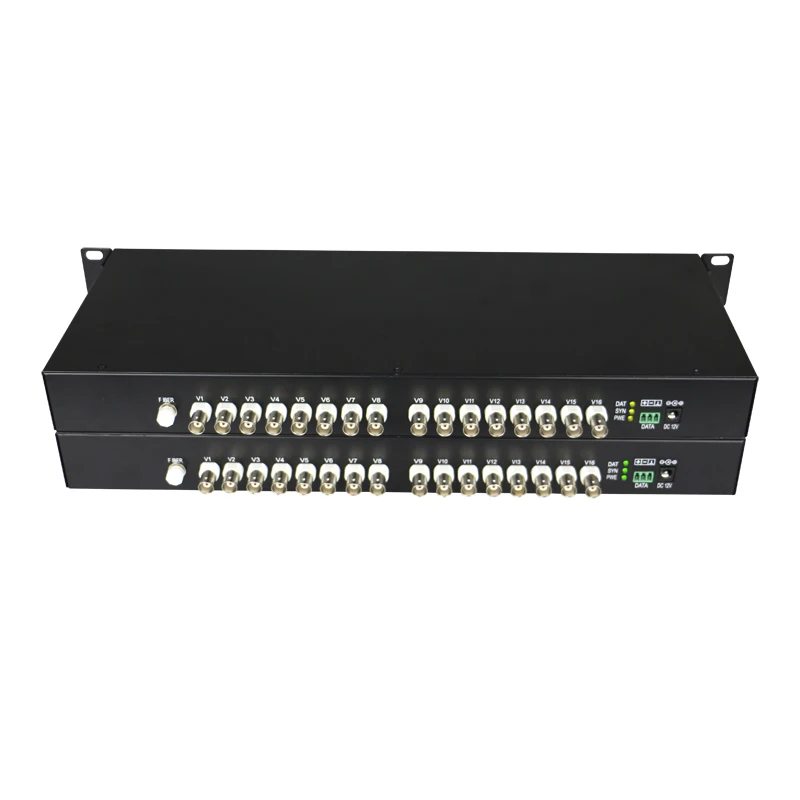

High Quality HD CVI 16 Channel Video Fiber Optical Converters Transmitter Receiver -For 720P 960P AHD CVI TVI HD Cameras CCTV

Descriptions

1. Transmitter + Receiver
2. Fiber Mode: Single-Mode
3. Wavelengths: 1310nm/1550nm
4. Optical Power Budget: 12dB
5. Maximum Transmission Distance: 20km
6. Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
7. Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)

Key Features

1. Support Point-to-Point or Daisy-Chain connection
2. Uncompressed Digital Composite Video over one fiber
3. Compatible with all PAL, NTSC,SECAM Video Systems
4. No Data support RS485(2-wire or 4-wire)
5. Single-Mode Fiber Support for Distances up to 20 km
6. LED Status Provide Rapid Indication of Operating Parameters
7. No EMI or RFI and no ground loops
8. Support Coarse Wavelength Division Multiplexing (CWDM)
9. Stand alone
10. Produce according to customers specifications,providing OEM

Technical Indexes

Fiber	FC, Single Mode Single Fiber
Transmition Distance	0-20km
Wavelength	Transmitter: 1310nm(Tx)/1550nm(Rx)
	Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level	>500mVp-p
Receiver Output Level	1Vp-p
Self-adaption cable equilibrium	960p: 75-5 coaxial cable,500m 720p: 75-5 coaxial cable,500m
Transmitter Input Return Loss	>15dB
Input/Output Impedance	75Ω
Video Physical Interface	BNC
Video Channel	16-Ch
Video bandwidth	50MHz
Sampling Bandwidth	10 bit
RS485	1-Ch Backward RS485 (No)
Indicators	OPT, PWR, DATA, VIDEO
Power	DC 12V1A
Power Consumption	≤7W
Operation Humidity	10%~90%
Operation Temperature	-30°C~75°C
