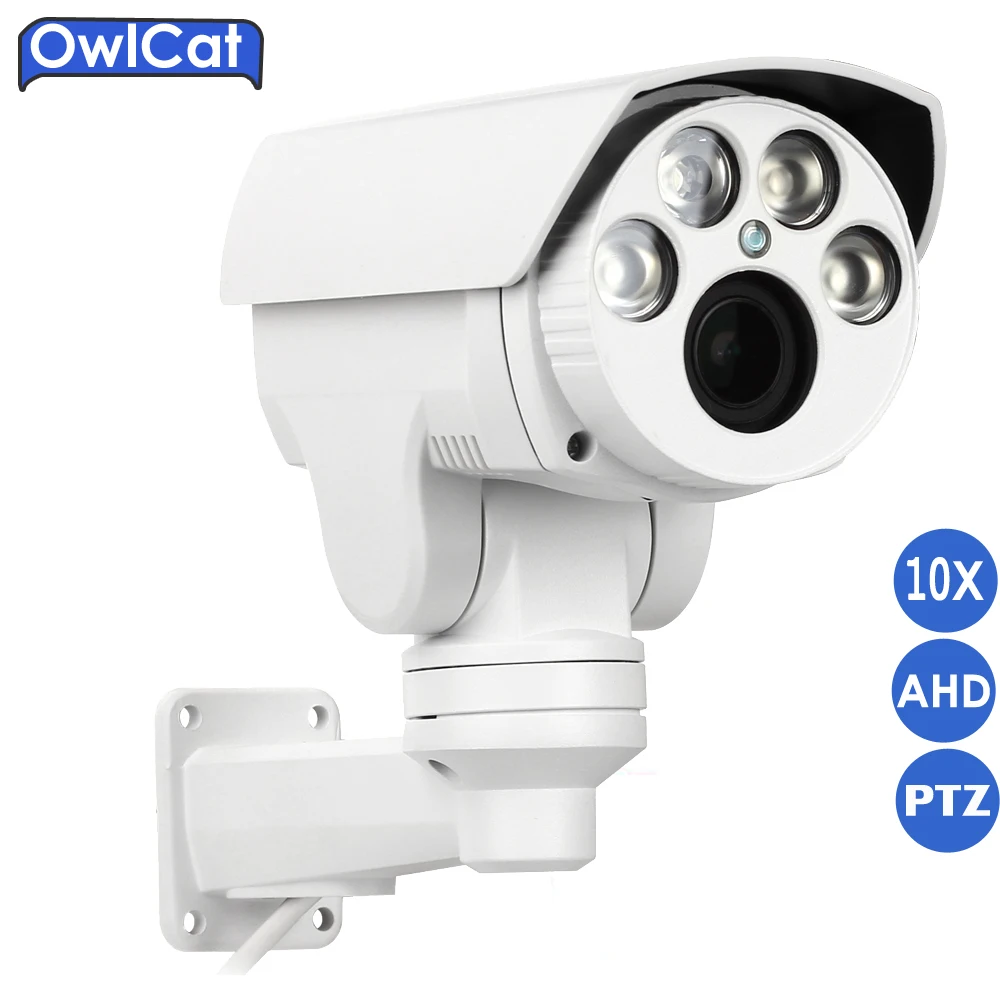

OwlCat Full HD 1080P 960P Varifocal Auto Focus 10X Zoom 5mm-50mm Varifocal lens AHD Outdoor Bullet PTZ Camera 2MP IR cut
Function Characteristic:
1. Outdoor IR Bullet AHD PTZ Camera (Auto Pan /Tilt /Zoom)2. HD 1080P 2MP Sensor: 2441+Sony 322; HD960P 1.3MP Sensor: 2431H+AR0130.3. Resolution: Full HD 1080P (2.0Megapixels) / Or HD 960P (1.3Megapixels) option4. 10X optical Motorized Auto zoom lens 5-50mm5. 4* High Power IR Leds, 10-60m IR Night View Distance6. 0-300°continuous pan rotation speed up to 12°/s7. -5-60° tilt rotation speed up to 12°/s8. 255 presets, 4 groups, 4 cruise9.This AHD Camera can work with your AHD DVR recorder ONLY. (It doesn not work with Old Analog DVR!!!)10. IP66 all-environments protection and Outdoor Water Resistence.11. Mobile Phone (iPhone & Android OS) remote control PAN/ TILT/ ZOOM and remote view by connecting AHD DVR. Note: This AHD PTZ Camera can work with 1080P AHD DVR Only !!!Power Adapter (12V2A) is not included in package. We sell this AHD ptz camera with Full HD 1080P or HD 960P. You can choose when you place order. We will send camera as per your order.
| Model No. | AR10X-130 | AR10X-200 |
| Image sensor | 1/2.8" CMOS | |
| Horizontal resolution | HD 960P (1.3Megapixels) | Full HD 1080P (2.0 Megapixels) |
| Optical focus | 10X Motorized Auto Focus Zoom | |
| Focus length | 5-50mm Varifocal Lens | |
| Minimum illumination | 0.01Lux @(F1.6,AGC ON) ,0 Lux with IR | |
| IR distance | 60 | |
| Video compression | H.264 | |
| Signal model | 50HZ:25fps(1920 X 1080) 60HZ:30fps(1920 X 1080) | |
| Day and Night | ICR | |
| Electronic shutter | 1/25s ~ 1/100000s | |
| DNR | 2D/3D-DNR | |
| Horizontal range | 0°~260° | |
| Vertical range | -5°~60° | |
| Horizontal speed | 0.5°~12°/ s | |
| Vertical speed | 0.5°~12°/ s | |
| Presets | 255 | |
| Cruise track | 8 groups, each group for 16 presets | |
| Patrol track | 4 groups, each group record 3 mins | |
| Protocol | PELCO-D/PELCO-P | |
| protection level | IP66 | |
| Bracket | Wall mounted | |
| dimension | 240mm×95mm×190mm (L×W×H) | |
| Weight | 920g | |
| Power | DC12V/2A (Not include) | |
| Work temperature | -30 C ~60 C | |
Analog High Definition ( AHD ) Mini PTZ Bullet Camera User Manual
I. Cable Definition
Signal, power supply cable connection, please reference following chart:
II. Address, Protocol, Baud Rate Setting
Decoder of PTZ will automatically match protocol,no need to set; support PELCO-D,PELCO-P.Factory default PTZ address is code 1 and baud rate is 2400. If you want to modify them, follow the following steps:
First method(for models with NO OSD menu):
Call No.101—No.199 to set the address is 1—99.Call No.201—No.204 to set the baud rate is 1200,2400,4800,9600.If you forget the adress,you can use the Universal address code 255 to control the PTZ,and then you can call the corresponding preset to set the address and baud rate what you want. Please restart the camera after you modified.
Second method(for models with OSD menu):
Except for method 1,Please call No.95 preset to enter Main Menu, system setup and Com setup, after that, you can modify them. Please restart the camera after you modified.
| Main menu 1.system information 2.system setup 3.function setup 4.display setup 5.camera menu setup 6.factory default 7.exit | system setup 1.motion flip:off/on 2.speed matching:off/on 3.motion speed: 02 4.time setup: 5.IR setup: 6.communication setup; 7.language:EN 8. Return | Com Setup 1.Baudrate: 2400 2.Com Addr: 01 3.Return |
IV.PTZ camera instruction list
| Function | Mode Of Operation |
| Address Setting | Call 101—199,the address is 1—99 |
| Baud Rate Setting | Call 201,202,203,204,the baud rate is 1200,2400,4800,9600 |
| Universal address | Address code 255 |
| The first cruise line(1-16 presets) | call71 |
| The second cruise line(17-32 presets) | call72 |
| The third cruise line(33-48 presets) | call73 |
| The fourth cruise line(240-255 presets) | call74 |
| A cruise preset for 4 seconds | call75 |
| A cruise preset for 8 seconds | call76 |
| A cruise preset for 10 seconds | call77 |
| A cruise preset for 15 seconds | call78 |
| A cruise preset for 20 seconds | call79 |
| Set the left limit point A | call91 |
| Set the right limit point B | call92 |
| To enable A, B two points scans | call93 |
| To clear A, B two points scans | call94 |
| Horizontal scan | call99 |
| Scanning speed | Call 65, 66, 67, 68, 69 preset position, the corresponding rate is 3, 6 degrees per second, 9, 15 degrees and 40 degrees |
| Idle task setting | Call 61:Preset level 1 |
| Call 63:A/B scans | |
| Call 64: Horizontal scan | |
| clear all of the presets | call60 |
| Open the camera menu | Call70 |
| Open the dome menu | call95 |
| Restore the factory | call96 |
NOTE: If the camera without OSD menu, you must NOT to call 95 preset, it will lead to the camera out of control; If do this by mistake, you need power off to restart, or you can no need do any operate until 1 minute,the camera can be return to normal and can control it.
