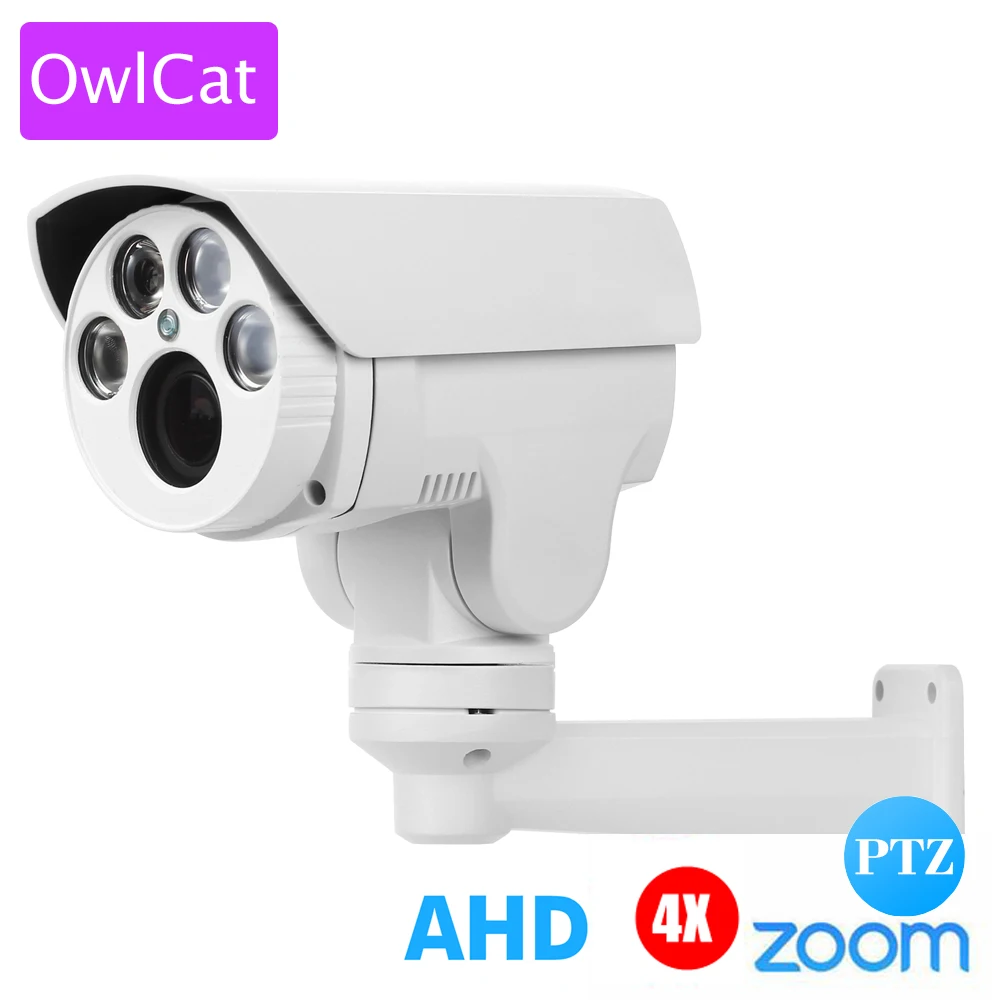

CCTV Security Cameras Product Store Choice Collections provide camera system,cctv camera,hidden camera Fantastic Promotion OwlCat AHD PTZ Bullet Camera Outdoor HD 1080P AHDH 4X 10X Zoom Auto Focus 2.8-12mm 5-50mm 2MP Analog High Definition IR Camera. Get Discount Now! Only US $89.99/piece at this time. Hurry buy Now before back to normal price! Normal price US $126.75 or you can Check price now. Dont waste your time. Buy Now only in OwlCat Official Store Trusted Seller Store!
AHD IR Bullet Camera Outdoor Full HD 1080P 4X 10X Motorized Auto Focus Zoom 2.8-12mm Varifocal 2.0MP External PTZ Camera
Function Characteristic: 1. Outdoor IR Bullet AHD PTZ Camera (Auto Pan /Tilt /Zoom)2. HD 1080P 2MP Sensor: 2441+Sony 322 ; 3. Resolution: Full HD 1080P (2.0Megapixels) 4. 4X optical Motorized Auto zoom lens 2.8-12mm / (or 10X optical Motorized Auto zoom lens 5-50mm OPTION)5. 4* High Power IR Leds, 10-60m IR Night View Distance6. 0-300°continuous pan rotation speed up to 12°/s7. -5-60° tilt rotation speed up to 12°/s8. 255 presets, 4 groups, 4 cruise9. This AHD Camera can work with your AHD DVR recorder ONLY. (It doesn not work with Old Analog DVR!!!)10. IP66 all-environments protection and Outdoor Water Resistence.11. Mobile Phone (iPhone & Android OS) remote control PAN/ TILT/ ZOOM and remote view by connecting AHD DVR. Note: If you buy this AHD-H(1080p) PTZ Camera ,you MUST have a 1080P AHDH DVR to compatible with it !!!Power Adapter (12V2A) is not included in package.| Model No. | AR10X-200 | AR4X-200 |
| Image sensor | 1/2.8" CMOS | |
| Horizontal resolution | Full HD 1080P (2.0 Megapixels) | Full HD 1080P (2.0 Megapixels) |
| Optical focus | 10X Motorized Auto Focus Zoom 4X Motorized Auto Focus Zoom | |
| Focus length | 5-50mm Varifocal Lens 2.8-12mm varifocal lens | |
| Minimum illumination | 0.01Lux @(F1.6,AGC ON) ,0 Lux with IR | |
| IR distance | 50 | |
| Video compression | H.264 | |
| Signal model | 50HZ:25fps(1920 X 1080) 60HZ:30fps(1920 X 1080) | |
| Day and Night | ICR | |
| Electronic shutter | 1/25s ~ 1/100000s | |
| DNR | 2D/3D-DNR | |
| Horizontal range | 0°~260° | |
| Vertical range | -5°~60° | |
| Horizontal speed | 0.5°~12°/ s | |
| Vertical speed | 0.5°~12°/ s | |
| Presets | 255 | |
| Cruise track | 8 groups, each group for 16 presets | |
| Patrol track | 4 groups, each group record 3 mins | |
| Protocol | PELCO-D/PELCO-P | |
| protection level | IP66 | |
| Bracket | Wall mounted | |
| dimension | 240mm×95mm×190mm (L×W×H) | |
| Weight | 920g | |
| Power | DC12V/2A (Not include) | |
| Work temperature | -30 C ~60 C | |
Analog Mini PTZ Bullet Camera
I. Cable Definition
Signal, power supply cable connection, please reference following chart:
II. Address, Protocol, Baud Rate Setting
Decoder of PTZ will automatically match protocol,no need to set; support PELCO-D,PELCO-P.Factory default PTZ address is code 1 and baud rate is 2400. If you want to modify them, follow the following steps:
First method(for models with NO OSD menu):
Call No.101—No.199 to set the address is 1—99.Call No.201—No.204 to set the baud rate is 1200,2400,4800,9600.If you forget the adress,you can use the Universal address code 255 to control the PTZ,and then you can call the corresponding preset to set the address and baud rate what you want. Please restart the camera after you modified.
Second method(for models with OSD menu):
Except for method 1,Please call No.95 preset to enter Main Menu, system setup and Com setup, after that, you can modify them. Please restart the camera after you modified.
| Main menu 1.system information 2.system setup 3.function setup 4.display setup 5.camera menu setup 6.factory default 7.exit | system setup 1.motion flip:off/on 2.speed matching:off/on 3.motion speed: 02 4.time setup: 5.IR setup: 6.communication setup; 7.language:EN 8. Return | Com Setup 1.Baudrate: 2400 2.Com Addr: 01 3.Return |
IV.PTZ camera instruction list
| Function | Mode Of Operation |
| Address Setting | Call 101—199,the address is 1—99 |
| Baud Rate Setting | Call 201,202,203,204,the baud rate is 1200,2400,4800,9600 |
| Universal address | Address code 255 |
| The first cruise line(1-16 presets) | call71 |
| The second cruise line(17-32 presets) | call72 |
| The third cruise line(33-48 presets) | call73 |
| The fourth cruise line(240-255 presets) | call74 |
| A cruise preset for 4 seconds | call75 |
| A cruise preset for 8 seconds | call76 |
| A cruise preset for 10 seconds | call77 |
| A cruise preset for 15 seconds | call78 |
| A cruise preset for 20 seconds | call79 |
| Set the left limit point A | call91 |
| Set the right limit point B | call92 |
| To enable A, B two points scans | call93 |
| To clear A, B two points scans | call94 |
| Horizontal scan | call99 |
| Scanning speed | Call 65, 66, 67, 68, 69 preset position, the corresponding rate is 3, 6 degrees per second, 9, 15 degrees and 40 degrees |
| Idle task setting | Call 61:Preset level 1 |
| Call 63:A/B scans | |
| Call 64: Horizontal scan | |
| clear all of the presets | call60 |
| Open the camera menu | Call70 |
| Open the dome menu | call95 |
| Restore the factory | call96 |
NOTE: If the camera without OSD menu, you must NOT to call 95 preset, it will lead to the camera out of control; If do this by mistake, you need power off to restart, or you can no need do any operate until 1 minute,the camera can be return to normal and can control it.
About the Payment:
We accept payment from Aliexpress accept Escrow/ Credit card/ / Money Booker ! such as Visa,WebMoney (referred to as WM), TT remittances, Paypal, Western Union, Qiwi wallet, Brazil Boleto and so on.
About the Shippment:
1 We ship to Alixpresss registered address ONLY.
2 We will arrange goods for you within 1 to 3 working days nomally. Please check the tracking information on the website: www.17track.net. Please note, it will take 2 to 5 days before the tracking information can be viewed online.
3 The shipping cost does not include any import taxes,and buyers are responsible for customs duties.
We will not responsible for your import tax/customs duties or any other customs charges.
However, normally we can declare a lower value on package to your customs if you need,please let us know when order. But if your customs ask for extra money for your tax/duty, you will have to pay and solve with them. Please make sure that you can finish declarance and pay your customs tax/duties.Please leave message when you place orders about delcare value,Otherwise we will declare by our experience (For example $25-$45 or write Real value )
4 We do not guarantee delivery time on all international shipments due to differences in customs clearing
5 For DHL fast delivery,if your postal code/city are REMOTE AREA out of DHL delivery range,we will contact you to pay extra REMOTE FEE(35USD), otherwise we have rights to choose another similar delivery way like EMS.
About Return/Refund:
1 Please feel free to contact us if your have any problem or need any help about your order,We will happy to service you in 7/24 time,thanks.
2 We offer 12 month manufactures warranty for main product repair and tech supports except accessories.
When you received the product with problems, please offer the photos or short videos as proof within 3days,then we could bear $10 returned shipping cost, After 3 days upon receiption, you bear one way shipping cost for sending to us, we will bear the shipping cost for sending back to you. After one month upon receiption, two way shipping cost(including shipping cost from China to your address) will be both on you.
All return-goods MUST BE in ORIGINAL package without any broken for resell, if it is broken due to your return, we will have to ask for compensation. Return cost will be paid by buyer.
For full refund, please send full package back(including all accessories);
For repairing or replacement, please send only product without accessories. At any case please make sure parcel well packing.
3 If the items are damaged lost when they are returned,the buyer will be responsible for such damage or loss,and we will not give the buyer a full refund.
4 We will not refund shipping charges for refused shipments
5 Please dont open dispute before any communication if you unsatisfied with our products or service,, that is no any help for you and us, we will solve your problem ASAP after get your require, please kindly understand, thank you very much!
About the Feedback:
1 Your satisfaction is our greatest comfort, we are always expecting serving for you!
2 Your comment and suggestion is quite important for our shop. Please take a minute to leave a 5 stars positive feedback with detailed Selling Rating of 5.
All 5 stars positive feedback/reviews buyers can enjoy additional 3 month warranty and priority service.
3 Please do not throw 1-3 stars bad feedback/reviews simplely. That is USELESS to solve your problem.
If you are not happy with our products, Please giving us a chance, well try our best for you. Thanks for your kindly understand in advance
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Fantastic Promotion OwlCat AHD PTZ Bullet Camera Outdoor HD 1080P AHDH 4X 10X Zoom Auto Focus 2.8-12mm 5-50mm 2MP Analog High Definition IR Camera
