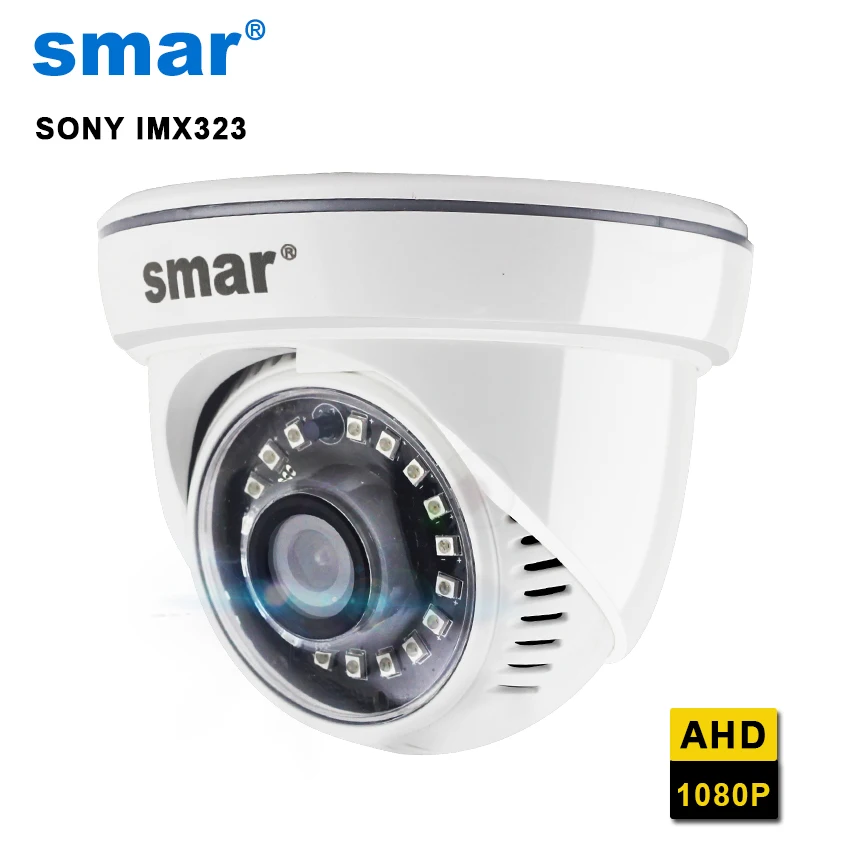

2018 New Smar Sony IMX323 CMOS 18 Nano IR LEDS HD 1080P AHD Camera Dome Surveillance Camera IR Cut Filter With Work AHDH/AHDNH AHD DVR

2018 New Smar Sony IMX323 CMOS 18 Nano IR LEDS HD 1080P AHD Camera Dome Surveillance Camera IR Cut Filter With Work AHDH/AHDNH AHD DVR remote cctv Rating: 3.8 out of 5

CCTV Security Cameras Product Store Choice Collections provide spy camera,security surveillance,camera system,cctv camera 2018 New Smar Sony IMX323 CMOS 18 Nano IR LEDS HD 1080P AHD Camera Dome Surveillance Camera IR Cut Filter With Work AHDH/AHDNH AHD DVR. Get Discount Now! Only US $16.54/piece at this time. Hurry buy Now before back to normal price! Normal price US $21.20 or you can Check price now. Dont waste your time. Buy Now only in smar Official Store Trusted Seller Store!

Great product can enhance the high quality of your life. Qualified to be bought. Inexpensive cost and complimentary shipping. Allow's get before costs increase.

We all offer free dispatching worldwide to certain New 2018 New Smar Sony IMX323 CMOS 18 Nano IR LEDS HD 1080P AHD Camera Dome Surveillance Camera IR Cut Filter With Work AHDH/AHDNH AHD DVR items. Purchase ASAP before the cost goes up! Get best price for Special 2018 New Smar Sony IMX323 CMOS 18 Nano IR LEDS HD 1080P AHD Camera Dome Surveillance Camera IR Cut Filter With Work AHDH/AHDNH AHD DVR goods is merely for the first 10 purchasers at this point.

Excellent

Smar Sony IMX323 CMOS 18 Nano IR LEDS HD 1080P AHD Camera Dome Surveillance Camera IR Cut Filter With Work AHDH/AHDNH AHD DVR

1. 1/2.8" SONY IMX323 CMOS Sensor For 1080P

2. PAL:1920*1080P@25fps, NTSC:1920*1080P@30fps
3. 18PCS NANO IR LEDS with10-15M IR Distance

4. Built in IR-CUT Filter, Day & Night Vision
5. High Quality ABS Plastic Case, Only Used Indoor
6. Standard lens: HD 3.6mm Lens (2.8mm/6mm/8mm lens optional), if you need other lens, please leave a message to us in your order.
7. AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.
10. MUST work with AHD DVR which1080P/1080N(AHDH/AHDNH)Mode!
11. Best choice for project reconstruction.
12. You can upgrade an old analog security system to 2.0MP HD cameras withoutchanging cable routes.

Camera

Model SAE50-AX3CV200D

Image Sensor 1/3 inch 2135 CMOS

DSP XM320

Signal System PAL/NTSC Min Illumination Colour:0.1Lux/F1.2 B/W:0.01Lux/F1.2 IR-ON:0Lux S/N Ratio >58dB(AGC OFF) Video Output 1CH AHD HD/CVBS Standard Singal Output(Switchable) Max Transmission Distance Over 500m via 75-3 coaxial cable(Dont use inferior cables) Infrared LED 18pcs Nano IR LED 12mil IR Distance 10-15 Meters (The difference of scene environment will lead to differences of IR distance) Day&Night IR cut filter with auto switch Lens Default 3.6mm (2.8mm,6mm,8mm optional)


Max Resolution 1920(H)*1080(V)

Image Process AE, AWB, ABF, ABLC 2DNR/3DNR Support(Auto)

Interface

Communication Interface 1Vp-p Composite Output(75Ω/BNC） Power port 1*DC12V(5.5mm/2.1mm)

General

Reliability Comprehensive lightning protection,in line with national and international standarda;7*24 hours 65 ℃ high temperature stable and reliable testing (camera board testing) Operating Environment -10°~60°,humidity 90% or less (non-condensing) Power Supply DC12V ± 10% Power Consumption Max.6W Housing Material High quality plastic Material Weight 0.2kg(about)

Note:This IP Camera Default HD 3.6MM Lens, If you need other Lens, Please leave a message to us on your order page.Below is the Lens Focus, Lens View Angel, Lens Distance Comparison Table.(for your reference)

Packing List:

1 * 1080P Dome AHD Camera

1* User Manual

NOTICE:

Our Camera does not include the power adapter.
If you need it, We can recommend for you, Please kindly click the photo as below, Add It in your Order List,Thanks ! (EU/UK/US/AU Optional)

PAY ATTENTION:

1. This item is the AHD1080P camera, AHD single is not the analog single.AHD 1080P camera must work with the AHDNH or the AHDH single. Your DVR must have the local AHD 1080P single, Then will work.

2. AHD 1080P is not means the NVR 1080P, NVR 1080P is only for the IP camera 1080P. AHD 1080P is for the AHD 1080P.

3. This camera cant work with the TV or other monitor. If you use the AHD tester, please make sure your tester have the AHD1080 single.

4. If you dont know which is AHD 1080P, please check into your DVR Menu to check the option "Digital" weather have the same image as my photo, if have it, it will work; Otherwise, it will not work. Under the "local" have 1080P or 1080N all can work. Please note.

If your DVR have no same display as our photo, the camera will not show any image, Please check carefully when you buying this item before;

We can recommend High Order, High Evaluation, Good Price 4CH/8CH AHD DVR for 720P/960P/1080P AHD Camera for you, Please click below the photo, then add it to your Shopping List:

All of Our’s AHD Camera Built-in IR CUT Filter, What’s IR-Cut Filter?

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

What is AHD?

AHD is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).

In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.

AHD is a novel technique pioneered These products and applications enable seamless and friendly transition of video surveillance systems from analog to digital, be it all-new digital installations or upgrades from existing analog installations.

AHD Cameras Image Quality

High image quality at the resolution of 720p/960p

The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.

FAQ :

Q: Whats the meaning for AHD-H,AHD-N and AHD-M?

A: AHD means the newest single in the world.

The AHD-M is for the AHD 720P and AHD 960P.

The AHD-N is for the AHD1080P, but resolution cant arrive real 1080P.

The AHD-H is the real AHD 1080P single.

Q: Whats the difference between AHD-M, AHD-N, AHD-H?

A: AHD-M is 720P 1280*720P Resolution.

AHD-N is 1080N, not the real 1920*1080,But can display 1080 resolution.

AHD-H is the real 1080P 1920*1080 resolution.

Q: Can I use the normal DVR work with the AHD Camera?

A: No, The AHD Camera must work with the AHD DVR, other way will not work.

Q: Can I use the AHD Camera contact to my monitor?

A: No, The AHD Camera must work with the AHD DVR, other way will not work.

Q: If I have one AHD 1080P Camera, Can I contact with the AHD-M DVR?

A: No, AHD 1080P must work with AHD-H or AHD-N single DVR.

Q: If I have one AHD 1080P DVR, Can I use the AHD 720P Camera?

A: YES, AHD 1080P DVR can work with AHD 720P and AHD 960P Camera.

Q: Can you make the OME to us?

A: Yes, We can make the OEM and ODM, you can contact us online.
