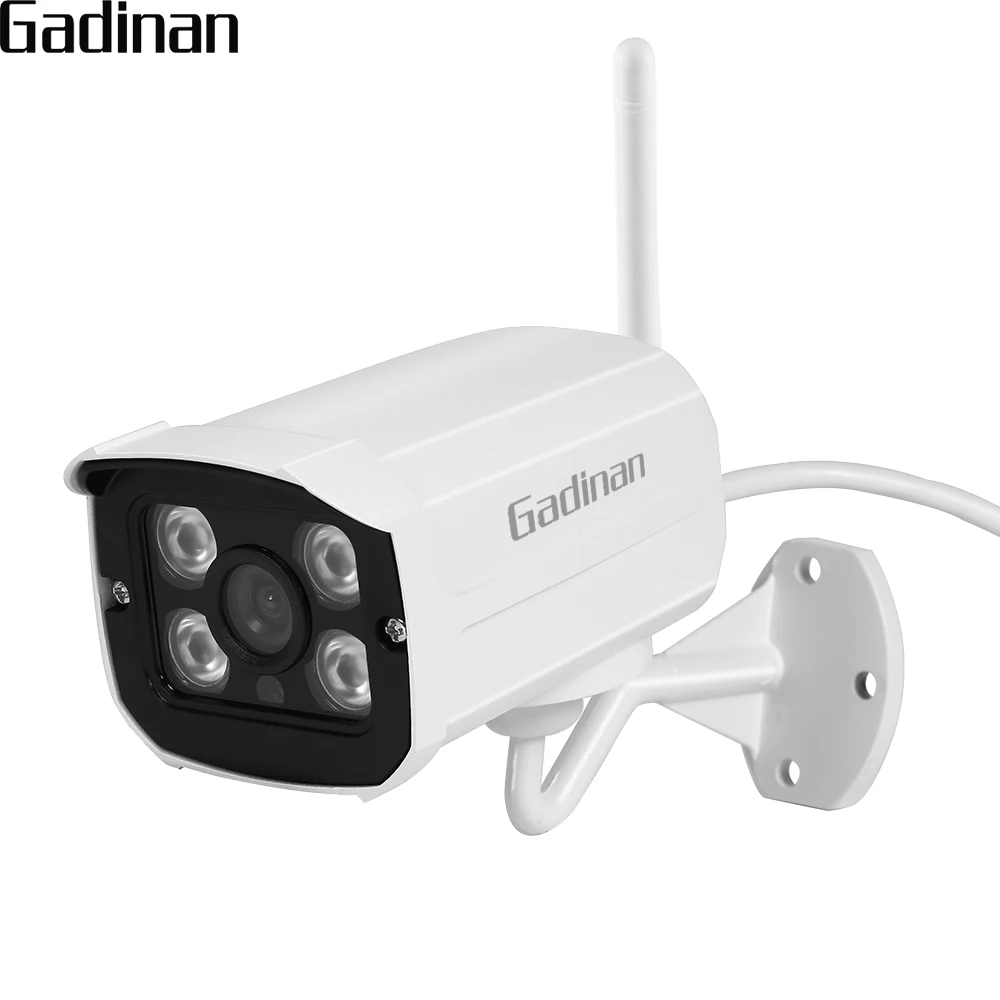

CCTV Security Cameras Product Store Choice Collections provide hidden camera,camera system,cctv camera Hurry! Limited GADINAN Wireless Wire WiFI IP Camera 3MP Night Version Waterproof CCTV Security 128G TF Card Slot ONVIF Motion Detection XMeye. Price at this time US $53.28/piece. Check price now to get discount! Dont waste your time. Buy Now only in Gadinan Pro Store Trusted Seller Store!
2. H.265/H.264 video encoding, support dual stream, AVI formats;Support for stream 0.1M~8Mpbs adjustable
3. Color 0.1Lux; B/W 0.01 Lux
4. 1 RJ45 Ethernet interface, 10/100M automatically adapting
5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol
6. Lens: 3MP 3.6mm/6mm optional
7. 4pcs High quality array IR led light
8. Support ONVIF 2.0, and mobile monitoring
9. TF card slot supports up to 128G
Specifications:
Model | H.265/H.264 3MP WiFi |
System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516CV300),pure hard compression ,watch dog |
Sensor | 1/2.7 " SC2235 CMOS sensor ,color 0.1Lux-F1.2,black/white 0.01Lux-F1.2 |
Video compression | H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
Image output | Main stream: 2048*1536-15FPS;1920*1080-25fps，1280*720-25fps; sub-stream: 704*576-25fps; |
Noise reduction | Support 2D/3D |
lens | 3MP 3.6mm/6mm optional |
Storage | Via PC/Mobile Phone/NVR With HDD |
Infrared light | 4pcs array IR leds |
Wide dynamic | Support digital |
Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
Auto iris | No |
SD Card | TF card slot supports up to 128G |
Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) |
Other function | Wifi |
ONVIF | Support |
Mobile monitoring | Support multiple mobile monitoring(iOS,Android) |
Power | DC12V/2A, power consumption:≤3W |
Dimension | 10.1*6.8*6cm(body) |
Housing material | Metal |
Package including:
1* Wifi Wireless IP Camera
1* antenna
(Does not include the power adapter,you can buy: ,)
Q & A1, IP camera default IP address:192.168.1.10User name:admin,password:empty(null)If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.Please click "Edit Device" to change the cameras ip address,For example, if your routers ip address is 192.168.0.1, then you need to change the cameras ip address to 192.168.0.XX."DeviceManage" It can find and change the IP address, upgrade the firmware.2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .then please input your P2P ID,user name and password to login and preview.Access to the IPC through the web, only one screen can be displayed. There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR) APP:XMEye or iCSee3,The cameras port information.ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.4,Does the cameras can be compatible with other manufacturers NVR?Please confirm whether other manufacturers NVR support onvif protocol.Our cameras onvif protocol is onvif Profile S, does not support HTTPS protocol;Auto focus camera, other manufacturers NVR can only zoom, can not focus.5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.A,How to set up motion detection?Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.B, About FTPFTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.We suggest the Sever-U and FileZilla FTP Server to upload the video or image.C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .D, RTSP URL for VLC media Player :RTSP port: 554rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_streamExample:rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set6, About DDNSMapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)Note: The two ports in the network settings can be viewed, can be modifiedWhat domain names are supported?- CN99 / DynDns / Oray / NO-IP / MYQ-SEE
1) Register and Login2) Click "+"3) Click "Add My Camera(recommended)"4) Click "Next step"5) Input wifi name and password 6) Automatic search and connect7) Set IP camera password8) Pick a name and save, complete
View via PC / Web
1,View via PC
Install the CMS(CMS for Windows,VMS for Mac) ( Software in the CD ,or can download online,need contact us )
You can select the language(18 languages)
How to watch via CMS:
2,View via web:
Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)
