CCTV Security Cameras Product Store Choice Collections provide spy camera,camera system,security camera Big Stock Promo 7 Inch 1080P IP Camera Tester Security CCTV Tester Monitor with SDI/TVI/AHD/CVI/Multimeter/TDR/OPM/VFL/POE/WIFI/4K H.265/HDMI. Price at this time US $569.99/piece. Check price now to get discount! Dont waste your time. Buy Now only in wsdcam Official Store Trusted Seller Store!

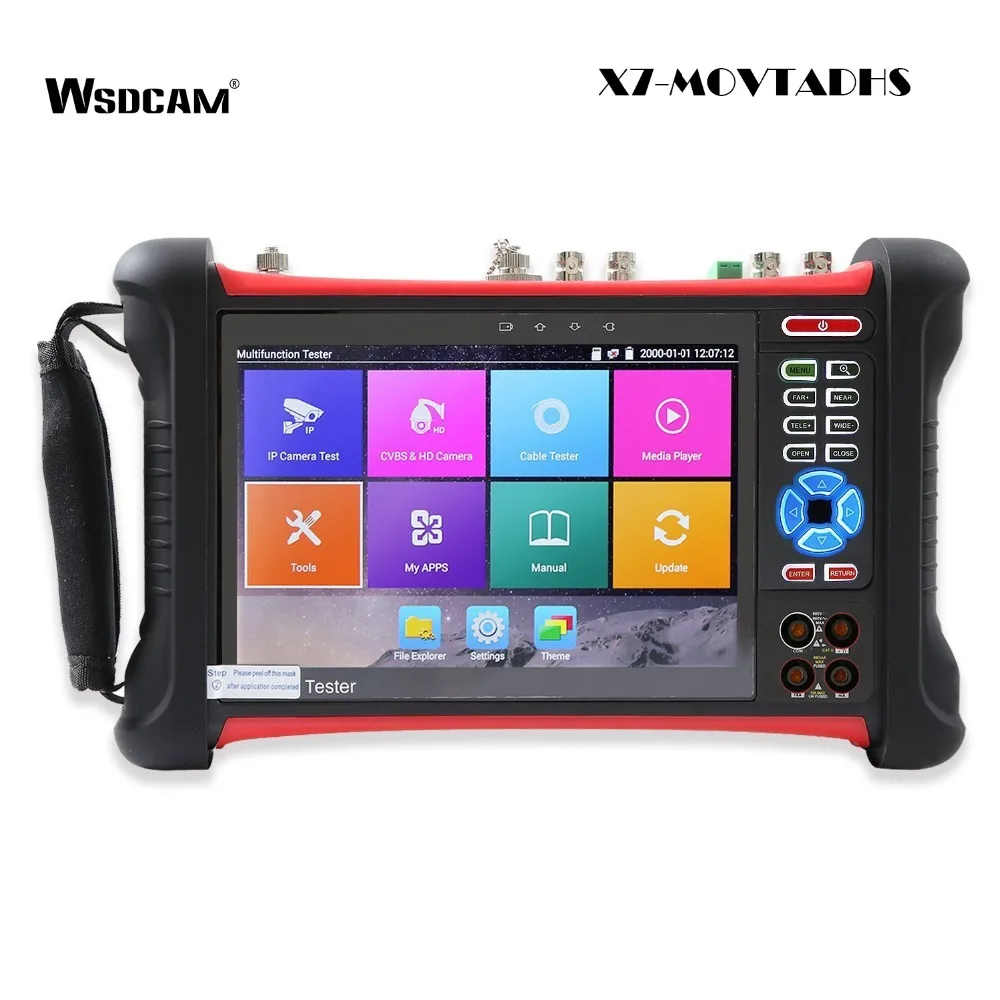

7 inch IP+Analog+AHD+TVI+CVI+SDI IPC Tester
with HDMI Input, Retina touch screen,1920x1200 resolution
Digital Multi-meter,Optical power meter,Visual fault locator,TDR cable test
4K H.265/H.264,8MP TVI, 8MP CVI, 5MP AHD SDI/EX-SDI
Full function model: X7 MOVTSADH
Specification
1. New -7 inch touch screen cctv tester with retina display ,1920*1200 resolution
2. New- 4 K support H.264 and H .265 IP camera via mainstream code testing
3. HD CVI camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4. New- HD TVI camera image display, support TVI 3.0,Hikvision 3MP TVI camera testing , zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
5. AHD camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
6. HD SDI camera test ,support 1080P/60Hz
7. New- Rapid video, by pressing just one key to detect all network cameras and auto play the images
8. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can generator testing report
9. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
10. New- In HDMI mode, It can converter test from analog to digital with dual test window IP & HDMIN or Analog & HDMI
11. New- Screen management, change function’s icons order, create new directory
12. New- Themes: Lite and normal model can select , change the icons and desktop background , sliding effect etc
13. New- Shortcut button, drop-down menu , you can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface
14. New- Screen lock, password lock and pattern lock are optional
15. New- HDMI signal in and out , supports up to 1080P
16. New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
17. New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable
18. New- Traffic monitoring of the tester "Lan port", display network port or WIFI connection real-time upload and download speeds and other network parameters
19. New- Customers self update software ,you can install apps with android version ,such as QQ, wechat etc
20. ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
21. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
22. New- 4K video files and MKV/MP4 media files play
23. PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
24. New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
25. OSD menu rotates in 180 angle
26. 8GB SD card including
27. Support mobile app of the IP camera
28. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address
29. Display its genuine resolution of the IP camera images
30. IPC test, combine with more than 80 brand camera, such as DAHUA, KEDA, HIKVISION and TIANDY camera.
31. Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG.
32. Video screen snapshot ,video recording ,files named and save, easy to find
33. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement
34. Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
35. POE voltage measurement, PING test ,IP address scan, port flashing etc
36. Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
37. 7.4 V /5000mAh Lithium Ion Polymer Battery, after 5~6hours charging , working time lasts 10 hours
Specifications:
| LCD | Itemseries | X7 MOVTADHS | |
| Display | New 7 inch IPS touch screen, 1920*1200 resolution | ||
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
| Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement* | |||
| PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
| CVBS loop test | the tester send and receive color bar generator signal, check BNC cable | ||
| IP camera test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||
| Rapid Video | Auto view the video, create testing report | ||
| Hik test tool | activate hikvision camera, modify the user name, password and IP parameters | ||
| Dahua test tool | Dahua camera test, modify the user name, password and IPparameters | ||
| IP& CVBS test | IP& CVBS test at the same time, converter test from analog to digital with dual test window | ||
| Coaxial HD test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu | ||
| 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu | |||
| 5MP AHD test,2560x1944P 12.5F/20F, UTC control d call OSD menu | |||
| HD SDI/EX-SDI camera test, support 1080P 50/60 FPS | |||
| HDMI input | 1 channel HDMI input, support 1080P | ||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||
| Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | |
| Power output | PoE power output | 48V PoE power output, max power 24W | |
| DC12V power | DC12V /2A power output | ||
| Cable test | Cable tracer | search BNC cable, network cable and telephone cable from the mess cables | |
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen | ||
| RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. | ||
| M | Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement | ||
| O | Optical power meter, Wavelength：1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement | ||
| V | Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending andbreakage, test range 10KM | ||
| T | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM | ||
| TesterPlay | screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
| Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test | ||
| Wi-Fi | Built in WIFI, speeds150M,display wireless camera image | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
| Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info , HDMI IN functions etc in any interface | ||
| External power supply | DC12V 2A | ||
| Battery | Built-in7.4V Lithium polymer battery ,5000mAh | ||
| Rechargeable | After charging 5~6 hours, normal working time 10hours | ||
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc | ||
| Auto off | 1-30 (mins) | ||
| WorkingTemperature | -10℃---+50℃ | ||
| WorkingHumidity | 30%-90% | ||
| Dimension/Weight | 255mm x 160mm x 46mm / 0.95Kg | ||
     | ||||||||
