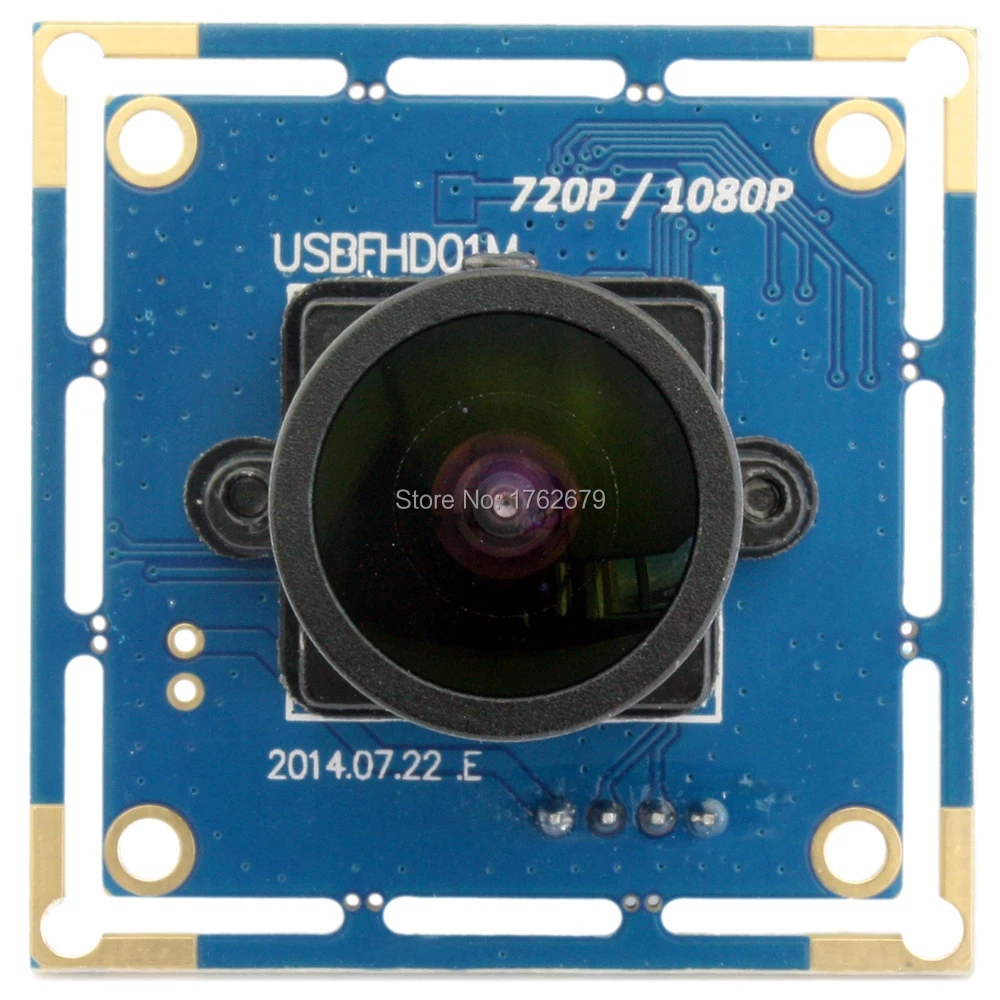

170 degree fisheye lens module board the security camera 2MP 1920*1080 wide angle CMOS OV2710 black and white mini usb camera
USB Cameras are imaging cameras that use USB1.1 or USB 2.0 technology to transfer image data. USB Cameras are designed to easily interface with dedicated computer systems by using the same USB technology that is found on most computers. The accessibility of USB technology in computer systems as well as the 480 Mb/s transfer rate of USB 2.0 makes USB Cameras ideal for many imaging applications.
The low cost USB CMOS board camera moduleis ideal for machineryequipment, all-in-one machine,
POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine,
safety box, notebook, video door phone, MID, Tablet external, evaluator,Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system,
Interactive system, automobile data recorder. Project video capture,credit card machine, attendance
machine, Voting system, High speed video shooting Device, exam system, Driving learning system,
Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,
Medical auxiliary equipment, etc.
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Black and White 2MP 1080P usb camera
LENS: 2.1mm/2.8mm/3.6mm /6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
| Model | ELP-USBFHD01M-B/W |
| Sensor | OV2710 |
| Sensor Size | 1/2.7 inch |
| Pixel Size | 3μm x 3μm |
| image area | 5856 μm x 3276 μm |
| Max. Resolution | FULL HD 1920(H)X1080(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & frame | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
| Special function | Lens correction/ Defective pixel correction/ Black sun cancellation |
| Mini illumination | 0. 05lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| USB protocol | USB2.0 HS/FS |
| Connecting Port type | USB2.0 High Speed |
| OTG protocol | USB2.0 OTG |
| Free Drive Protocol | USB Video Class (UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| Lens Parameter | Standard 3.6 mm, optional/2.5/2.8/3.6/6mm/FOV(D)187 Degree/170 Degree |
| Night vision | Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 120mA~220mA |
| Working current | 0~60 centigrade |
| Working temperature | -20~75centigrade |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / optional 2M,3M,5M |
| Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Package
170 degree fisheye lens effect
Black and White
