Cool Deals 2.8-12mm Varifocal Lens 1/2.8 SonyIMX322 Senor H.264 Onvif Super Hide Mini Wifi 1080P Full Hd Ip Wireless Cctv Security Camera

Cool Deals 2.8-12mm Varifocal Lens 1/2.8 SonyIMX322 Senor H.264 Onvif Super Hide Mini Wifi 1080P Full Hd Ip Wireless Cctv Security Camera Rating: 5 out of 5

CCTV Security Cameras Product Store Choice Collections provide security camera,remote cctv Cool Deals 2.8-12mm Varifocal Lens 1/2.8 SonyIMX322 Senor H.264 Onvif Super Hide Mini Wifi 1080P Full Hd Ip Wireless Cctv Security Camera. Price at this time US $73.50/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shenzhen Anseer Security Equipment Co.,Ltd Trusted Seller Store!

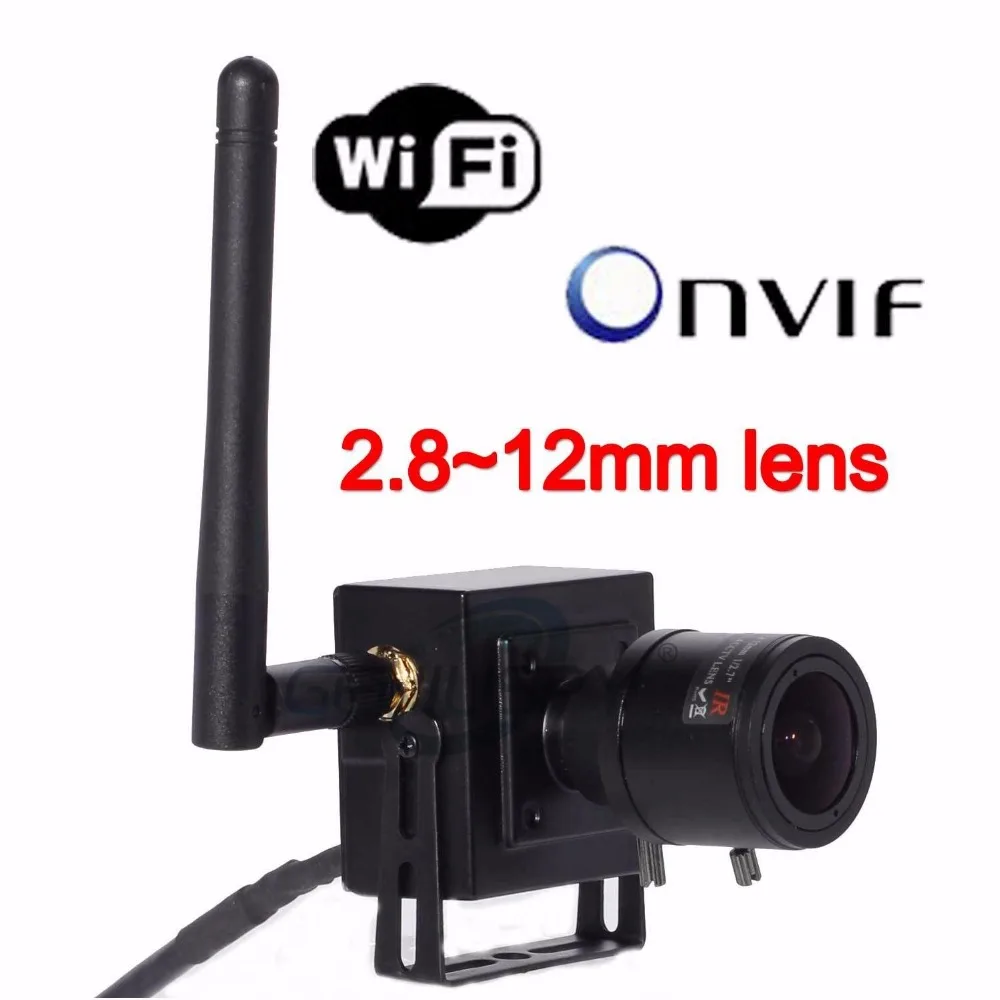

2.8-12mm Varifocal Lens 1/2.8" SonyIMX322 Senor H.264 Onvif Super Hide Mini Wifi 1080P Full Hd Ip Wireless Cctv Security Camera

attenation:

Regard OnVif support 2.8-12mm lens wifi mini ip camera

this models have:1xRJ 45 interface ,1x dc12v power , WIFI Module build inside!

camera support &wif for more products infomation ,pls go to page:http://www.aliexpress.com/store/1034208 if you have other requirement ,welcome contact with us free !

Features:

  • HD 1080PMini IP Network Wifi Camera

  • Equiped 2.8-12mm HD Megapixel lens

  • High resolution, presenting vivid and clear pictures.

  • Support automatic color change/IR-CUT,realising day&night non-stop monitoring.

  • Support various information superimposed (such as: ID, IP DDNS and so on) convenient to operate

  • Introduce advanced H.264 HP video compression, achieving ultra-low bit-rate, superb high-definition picture quality.

  • Support dual-stream

  • support various mobile long-distance monitoring iPhone,, Android

  • Support IE

  • support auto electronic shutter, adapt to different monitoring environment

  • web and CMS supporting central management software,providing SDK development

  • support HVR/NVR connection conform to ONVIF

Main Features:

H.264 Main Profile level

1.0/1.3 /2 Megapixel 1280*720 /1280*960/1920*1080P Resolution Can be optional

Dual H.264 Stream, resolution, frame rate, bit rate adjustable

Onvif Compliant compatible with brand NVR such as Hikvision, dahua,xiongmai

Support plug in & play,

Suport Day/Night

indoor Use for hide camera

H.264 Main Profile
2.0 Megapixel 1920*1080p Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
Support RTSP Compatible with VLC Media Player
Onvif Compliant,
support Onvif Version: 2.0

Technical Specifications

Specifications

1.MP720P(NQW140CV)

1.3MP 960P(NQW140CHV)

2MP 1080P(NQW140CMV)

System Structure

Embedded RTOS,dual-core 32bit DSP(Hi3518E),pure hard compression,watchdog

Embedded RTOS,dual-core 32bit DSP(Hi3516C), pure hard compression,watchdog

sensor

1/4"OV9712 CMOS 3518E

1/3" AR0130 Ultra-low-illumination

CMOS sensor

1/2.8" SONY IMX322 Ultra-low-illumination

CMOS sensor

Min illumination

Color 0.1Lux F1.2;

B/W 0.01 Lux F1.2;

Color 0.01Lux F1.2;

B/W 0.01 Lux F1.2;

Video Processing

H.264,support dual-stream,25fps(PAL), 30fps(NTSC) 1~30f/s variable;

Image output

720P,Main stream:1280*720;

Sub-stream:704*576;

960P,Main stream:1280*9601280*720;

Sub-stream:704*576

1080P,Main stream:1920*1080;

Sub-stream:704*576;

Audio interface

1ch intput,level 2Vp-p, impedance 1kΩ, support sound pick-up input;1ch output,level 16Ω,30mw,support earphones or amplifier;

Audio Processing

G.711, support bidrectional talk,audio&video synchronization;

Network interface

1*RJ45,10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc.;

photo resistance

A photo resistance interface, support photo resistance input signal and image,IR-CUT, infrared light linkage;

support

support WIFI

Intelligent

analysis

Standard intelligent video analysis functions

Service functions

Support WEB,OSD,live video transmission,support motion detection and IO alarm center reminders as well as screen pop-up linkage; JPEG capture;unified client remote monitoring software,xmeye ;perfect SDK;

ONVIF

Support

Mobile monitoring

Support mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Power

DC12V power input interface

size

42x22x42mm

Structures

Support POE power supply(can be optional,contact with us )

Wifi Moudle s Specification:

Specification Overview

Operating

Frequency

USA (FCC): 2.412GHz ~ 2.462GHz (channel 1 – 11) ISM band

Europe (CE): 2.412GHz ~ 2.472GHz (channel 1 – 13) ISM band

Protocols

802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM

Antenna

External Antenna via an I-PEX receptacle

Security

WPA/WP2, 64/128/152-bit WEP, WPS

Transmit Output

Power (Typical)

11b: 21±1.0dBm / 11Mbps; 11g: 18±1dBm /54Mbps

802.11n: (HT20), 18+/-1dBm, 8 02.11n: (HT40), 18+/-1dBm,

Receive Sensitivity

(Typical)

11b: -90dBm / 11Mbps; 11g: -73dBm / 54Mpbs.

802.11n: (HT20), -71dBm/MSC7, (HT40),-67dBm/MSC7

Operating Voltage

5.0VDC ± 5% (or3.3VDV± 5% upon special requirement)

Operating Current

<110mA at 5.0V DC input.

Bus Interface

USB 2.0/USB1.1

USB Interface

4-pin, 2.0mm pitch male jumper , or 4-pin 2.54mm pitch connector

Antenna Impedance

50 ohm

Package List1 xmini wifi IP Camera1 x CD Disk 1 x Bracket1x instruation For protect the environment & in avoid the cd disk of software broken by rude post air mail and express services !Software also will be sent to your emails or leave message in aliexpress when you need!pls contact with our team if you need ! To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!

Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !
