CCTV Security Cameras Product Store Choice Collections provide spy camera,security camera,remote cctv,cctv camera Great Limited 7 Inch CCTV Cameras Test Monitor Camera Tester 12V output WangLu TVI CVI AHD SDI CVBS IP HD Camera Testing ONVIF IP Camera Test. Price at this time US $189.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
IPC9800ADHS: Support IP+Analog+AHD+CVI+TVI+SDI Camera Test
IPC9800ADH : Support IP+Analog+AHD+CVI+TVI Camera test
IPC9800: Support IP+Analog Camera test
Before purchase:
Different model have different features, different interfaces , different accessories.
We would more like recommend that you confirm the model before you order, many thanks for your support.
This camera tester cant
support Digital Multimeter , Optical power meter , visual fault locater , TDR cable tester
Product description

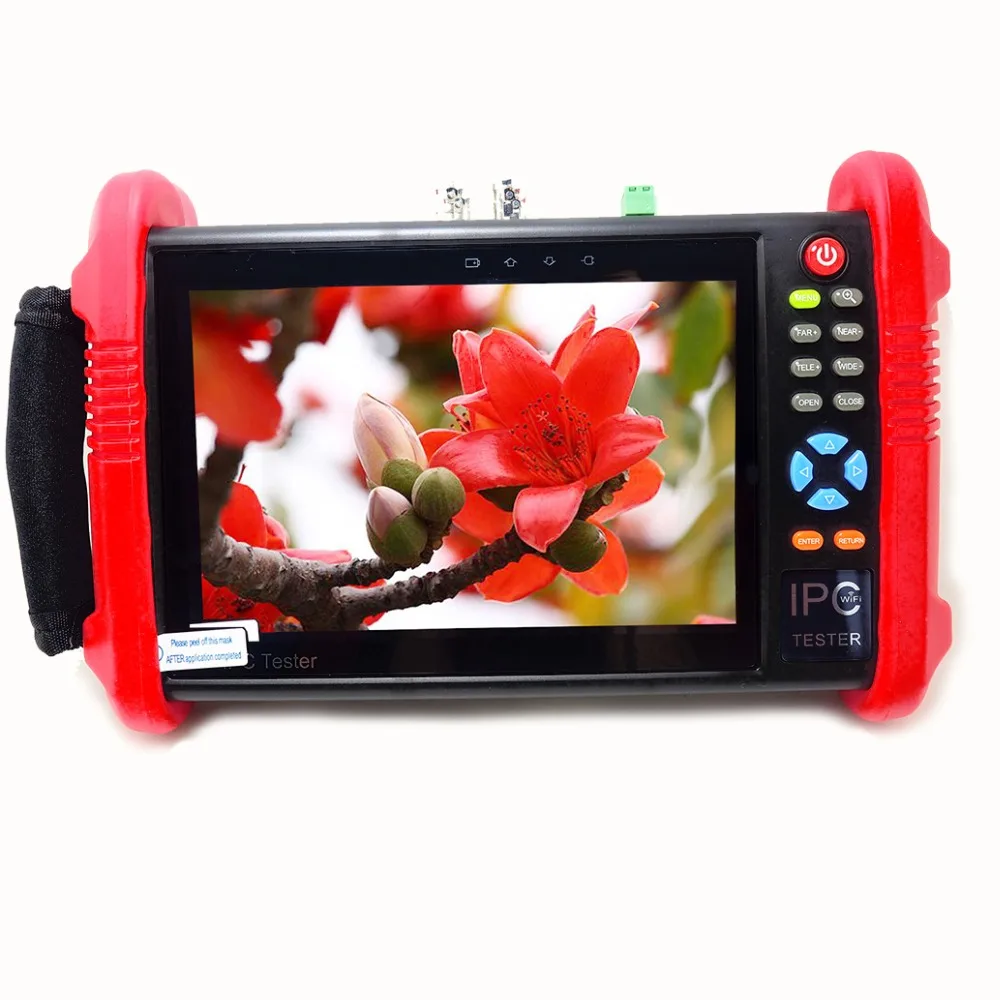

- 7 inch TFT-LCD test monitor with capacitive touch screen
- ONVIF IP camera test, 2592*1520
- IP CVBS (TVI CVI AHD / SDI Optional) camera
- WIFI
- 12V 2APower output
- 5V 2A power bank
- DC48V PoE power supply
- HDMI output
- IP camera viewer
- PTZ control
- Ping test

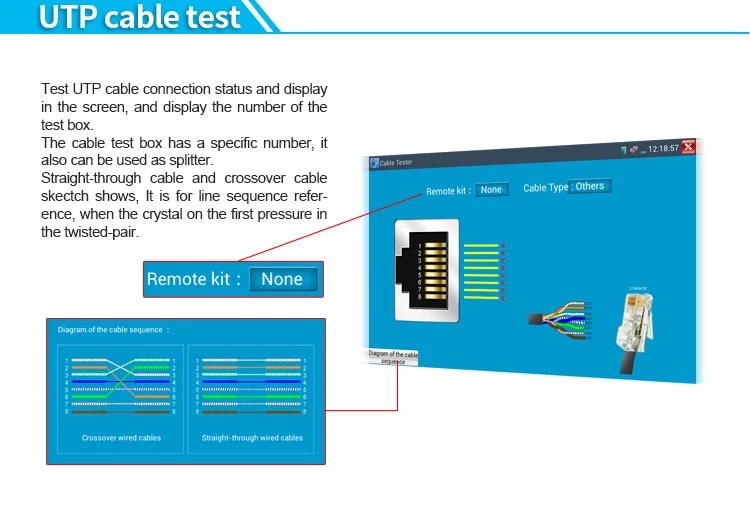

- UTP cable test
- IP discovery, Auto -search IP camera address
- Rapid ONVIF, Auto-login and display the camera image, activate Hikvision camera quickly.
7 inch tester monitor is designed for maintenance and installation of IP CVBS ( TVI CVI AHD / SDI Optional )
cameras as well as other security equipment.
It’s 1280 x 800 resolution enables it to display images from network HD cameras and analog cameras in top quality.
it supports ONVIF PTZ, analog PTZ control and Coaxial control.
A combination of touch screen and push buttons make the IP camera tester very user friendly.
In addition the tester is also a great tool for Ethernet networks and cabling systems.
It can test PoE voltage and is capable of IP address searching.
Other functions
- built in WIFI,
- UTP cable tester ,
- 12V 2A power output for camera ,
- DC48V PoE power supply,
- 5V 2A power output,
- HDMI output,
- Audio input and output,
- Network bandwidth testing,
- OSD menu rotates in 180 angle,
- OSD menu can be rotated in 180 angle by manual setting.
- The meters portability, user-friendly design and multi-function capability make it an essential tool for installers and technicians, greatly improving work efficiency and simplifying installations and system maintenance.
Application
—CCTV system installation and maintenance
—Network cabling project installation and maintenance
— Dome camera IP camera testing
—Video transmission channel testing
—PTZ control
Main Baisc Features
- IPS 7 inch TFT-LCD test monitor with touch screen ,1280*800 resolution
- LCD screen with brightness/contrast/color saturation adjustment
- Built in Wi-Fi can receive images from wireless cameras ,
- ONVIF and customized IP cameras(with more than 80 brand camera ,such as DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera)
- ONVIF IP camera test, support 2592*1520
- 8GB SD card including

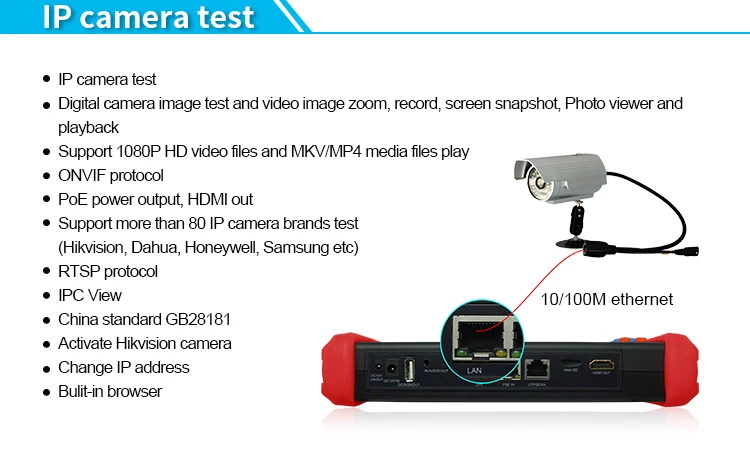

- Test H.264/MPEG4/MJPEG IP cameras
- Video image magnification enables detailed viewing
- HDMI signal output, supports 1080p

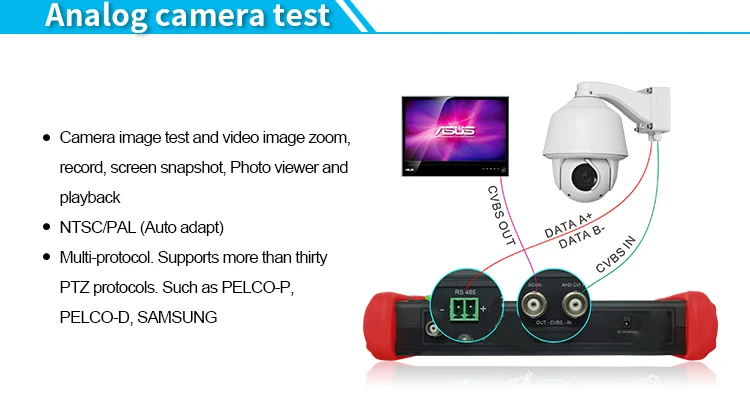

- Analog camera image display, auto adapts and display NTSC or PAL video formats
- Supports RS232/RS485, Rate 600 - 115,200bps adjustable

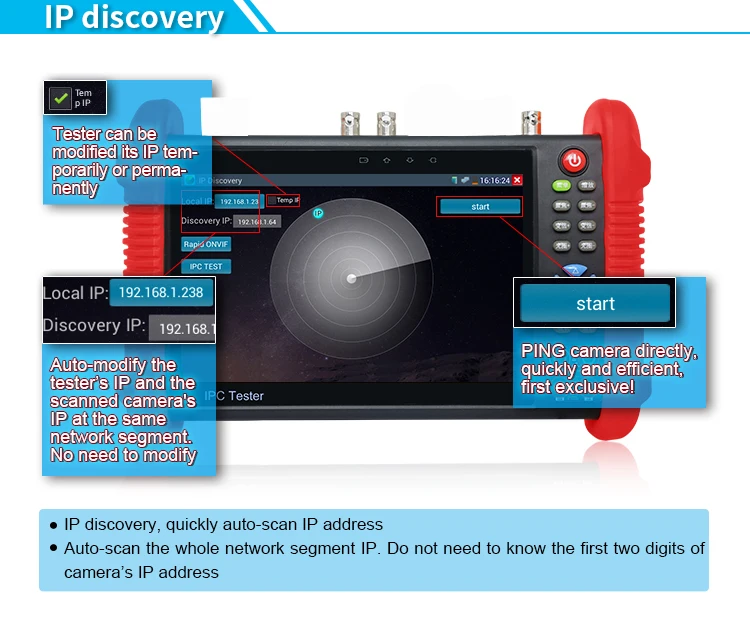

- IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address
- Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.
- Hik test tool app is design for activating and debugging Hikvision camera can auto-identify inactivated hikvision camera, also can display image from the Hikvision camera.
- DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.
- Snapshot and save images as JPG files in an SD card, video record and playback
- Support mobile client of the IP camera
- Display real resolution of the IP camera images
- PTZ controller ,Photograph, Video record, Record playback
- Color bar generator, analog video color bar and testing image output
- POE voltage test, PING test ,IP address scan, port flashing etc
- DC 48V PoE power output, supplies temporary power for PoE cameras
- 12V /2A power output
- 5V 2A power output, as the power bank
- Audio input and output test
- LED lamp, calculators, music players and other application tools
- 7.4V Lithium polymer battery ,5000mAh,after charging 7~8 hours ,working time last 10 hours
About the Shipping and Custom Duty :
It will be shipped via DHL or EMS, DHL might charge custom clearance fees, please confirm whether you have the clearance ablity.
Due to customs duties ,buyers refuse to get the goods, the buyers should pay all the resulting freight.
Import duties ,taxs and charges are not included in the price or shipping charges, These charges are the buyers responsibility, please check the custom clearance fees of your country before you place an order.
Please contact us to confirm the declared value ,
If your address belong remote area in DHL, may be you will be pay extra freight fee, we hopes to getting your understanding. Thank you for it .
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Great Limited 7 Inch CCTV Cameras Test Monitor Camera Tester 12V output WangLu TVI CVI AHD SDI CVBS IP HD Camera Testing ONVIF IP Camera Test
