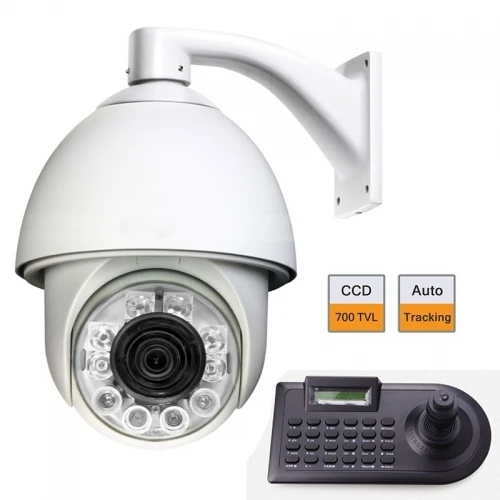

Fast Discount 6 Auto Tracking Speed Dome CCD 700TVL IR PTZ Camera w/ Joystick Keyboard Controller

Fast Discount 6 Auto Tracking Speed Dome CCD 700TVL IR PTZ Camera w/ Joystick Keyboard Controller Rating: 4.8 out of 5

CCTV Security Cameras Product Store Choice Collections provide security camera,security surveillance,camera system,hidden camera Fast Discount 6 Auto Tracking Speed Dome CCD 700TVL IR PTZ Camera w/ Joystick Keyboard Controller. Price at this time US $594.87/piece. Check price now to get discount! Dont waste your time. Buy Now only in Eprid Surveillance Security Cameras Store Trusted Seller Store!
You should make certain that prior to you purchase any kind of goods you have currently seen and check out the client evaluations of the item first. This method you can be sure that you are getting the ideal item that will match your needs.

PTZ Camera Features:

1. Using imported dot matrix large glass lamps and imported high-speed glass lamp light, to ensure the IR distance 120 m;
product life can reach 30, 000 hours.
2. Intelligent infrared control technology can automatically control the infrared light according to the environment. Under the premise of ensuring monitoring results, it can effectively enhance the infrared lamps life and ensure the product stability.
3. Constant current circuit design, to ensure stable operation of the infrared light. And it wont reduce the infrared lamps life which caused by the changing of the power supply.
4. Efficient cooling structure, using physical means heat, which can effectively reduce the temperature of the inside dome camera, to prevent the inner to be fogging, and to ensure the machines stability.
5. Auto tracking for the movable object within the scene and adjust the zoom automatically.
6. Manual control 180°/sec, horizontal range 360°, vertical range 90°, automatic turnover 180°
7. 256 preset positions, 4 lines of patten scan, 8 groups of cruise track
8. Support horizontal scan, A-B areas scan, random scan
9. Built-in full screen OSD menu, compatible with a variety of protocols, adjustable baud rate


Auto tracking function:


PTZ Camera Specifications:

Image sensor

1/3" SONY CCD

Signal model

PAL/NTSC

Horizontal resolution

700 TVL

Effective pixel

976(H) x 596(V)

Minimum illumination

Color: 0.01Lux, B/W: 0.001Lux

S/N radio

>=0dB(AGC OFF)

Focus length

3.9~85.8mm

Digital focus

22X

Focus

Auto/manual/Auto zoom

Focus system

Auto tracking for the movable object within the scene and adjust the zoom automatically.

Presets

256

Patrol

8 cruising tracks, each cruising track has 32 preset positions

Swing

4 pattern tours, each one with 500s memory

IR lighting distance

120M

Pan

360° continous

Tilt

-90°-0°

Communications

PELCO D, PELCO P

OSD

Yes

Power consumption

35W

IR life

30, 000 hours

Power supply

DC12V/4A

waterproof Criterion

IP66

Work environment

-35~+65°C


Controlling Keyboard Descriptions:

1. The keyboard controller is designed to control and operate high speed dome camera and digital recorder, it has built-in multi-protocols, such as SISO, PELCO-D, PELCO-P, EREN,SAMSUNG, PANASONIC AND KALATEL, as well as digital video recorder control protocols following HIKVISION,DAHUA and DALI, the keyboard controller adopts RS-485 communication port, multi-baud rates are available.
2. The keyboard controller can control and operate the cradle head, lens, presets, tour, trace scanning and menu setting,the unique one-bar control could flexibly control the action of cradle head and lens.
3. The keyboard controller can control the operation of multi-picture monitoring, video recording, playing, play forward, play backward, information display and menu setting. The LCD of keyboard controller can display camera number and DVR number and working status, it is very convenient for user to operate it.


Keyboard Connection:


Keyboard Features:

1. Built-in control protocol for a variety of intelligent cameras and digital video recorder, 5 kinds of common baud rates for option.
2. The keyboard uses password for management, it needs a password to operate.
3. The LCD display shows monitor number, camera number, the recorders number and operating state.
4. Four-dimensional vector variable speed controller owns the function of one joystick controlling which can support Focus, zoom and aperture flexibly.
5. Own an OSD menu for the smart cameras and digital video recorder.
6. Own the function of quick setup, preset position of the intelligent camera and Patrol queue.
7. Own the function of multi-screen monitoring supervising, recording, playing, fast forward and rewind for cameras.
8. Key tone and LCD backlight can be set by keyboard menu.
9. Use RS-485 half-duplex mode which and connect 16 keyboard, 32 intelligent cameras or DVRs. Control distance is more than 1500meters.



Keyboard Specifications:

Communication mode

RS-485 half-duplex

Power supply

DC12V

Communication rate

1200, 2400, 4800, 9600, 19200bps/s

Rocker type

Four-dimensional shift lever

Display

LCD


Item Includes:

1 x 700TVL CCD PTZ Auto Tracking Camera
1 x 12V Power Adapters for Camera
1 x Camera Bracket
1 x Multi-function Controlling Keyboard
1 x 12V Power Adapters for Keyboard
English Manual
