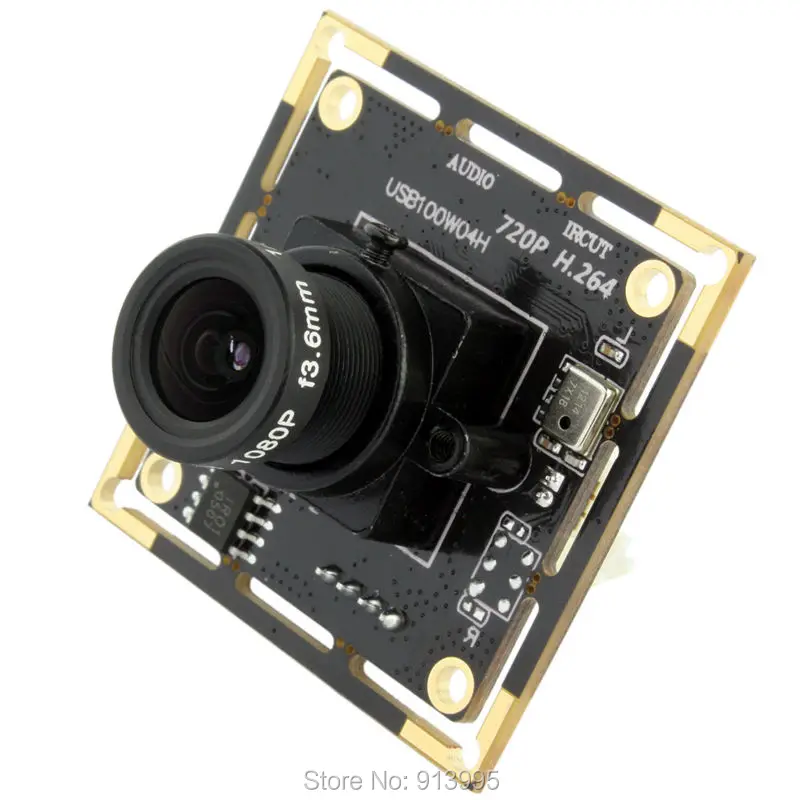

ELP 1mp HD CMOS OV9712 mini usb web camera with mic microphone ,720p H.264 usb camera module
General Description
The HD 720P USB CMOS board camera module(model: ELP-USB100W04H serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision, one of the world leaders in this field of electronics.
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Feature:
*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*H.264, YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
*With Microphone on board
Specification:
Optional models |
|
Sensor | OV9712 |
Lens size | 100W, 1.0megapixel, 1280X720 |
Max. Resolution | 1280*720 |
Picture format | H.264 YUY2 |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 1280 (H) x 720 (V) pixelsMJPEG 30fps YUY2 10fps |
Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | optional, can choose IR board |
view angle | 30-150 degree optional |
voltage | DC 5V |
current | 150mA |
work temperature | DEGREES(-20~70) |
Size | 32x32mm |
Support OS | WinXP/Vista/WIN7/WIN8 |
Effective Pixels:
1280 (H) x 720 (V) pixels
960 (H) x 720 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
352(H) x 288 (V) pixels
320 (H) x 240 (V) pixels
176(H) x 144 (V) pixels
160 (H) x 120 (V) pixels
(Other special size resolution is customized)
Performance:
1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
960 (H) x 720 (V) pixelsMJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixelsMJPEG 30fps YUY2 20fps
640 (H) x 480 (V) pixelsMJPEG 30fps YUY2 30fps
352(H) x 288 (V) pixelsMJPEG 30fpsYUY2 30fps
320 (H) x 240 (V) pixelsMJPEG 30fps YUY2 30fps
176(H) x 144 (V) pixelsMJPEG 30fpsYUY2 30fps
160 (H) x 120 (V) pixelsMJPEG 30fps YUY2 30fps
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
Product display:
USB Camera sample picture:
