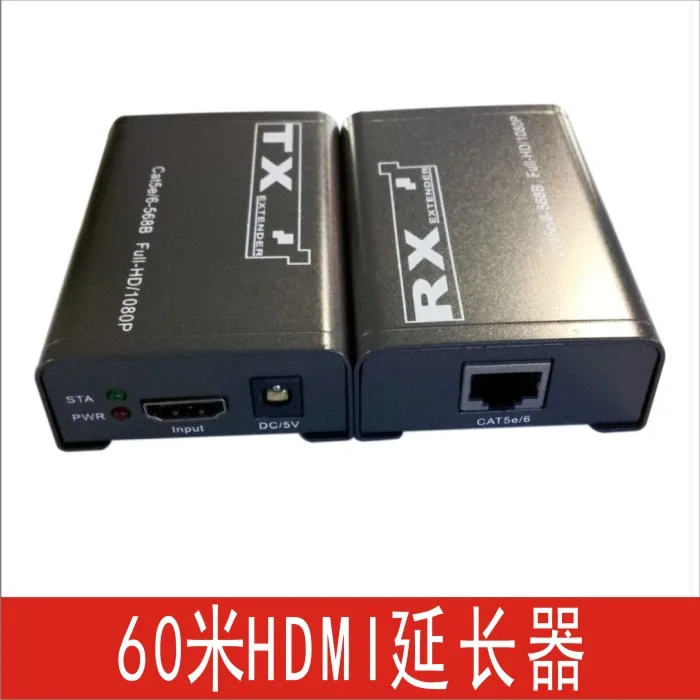

CCTV Security Cameras Product Store Choice Collections provide remote cctv,cctv system,security camera,hidden camera Fast Flash Deal 60m HDMI Extender CAT5e/6 Support 1080p 60m Extension Like HDMI Splitter Transmitter Receiver for CCTV DVR NVR HD60. Price at this time US $59.12/piece. Check price now to get discount! Dont waste your time. Buy Now only in China Shenzhen RuiHuiXing Store Trusted Seller Store!
Terrific product can improve the top quality of your life. Eligible to be acquired. Low-cost rate as well as cost-free delivery. Let's purchase Special Fast Flash Deal 60m HDMI Extender CAT5e/6 Support 1080p 60m Extension Like HDMI Splitter Transmitter Receiver for CCTV DVR NVR HD60 prior to rates rise.
If it will just undermine your work and also will not give you the kind of high quality that you need in the product, you don't require more affordable goods. With the higher cost you could be certain that your cash is worth spending in this Special Fast Flash Deal 60m HDMI Extender CAT5e/6 Support 1080p 60m Extension Like HDMI Splitter Transmitter Receiver for CCTV DVR NVR HD60 item...1. Description
Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2. Features
l Support HDMI 1.3 protocol
l HDCP 1.2 protocol compliant
l Support 3D
l Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Signal transmission: Single cat-5e or cat-6(recommended) cable up to 60 meters
l Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Audio format support : DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD.
l Support up to 5 meters AWG26 cable length between extender and source & sink device
l No loss of quality
3. Specifications
Length of CAT-6 cable between Rx and TX | Up to 60 meters |
HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support audio format input | DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support audio format output | DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
Max transmission bandwidth | 6.75Gbps |
Input Video signal | 0.5~1.5Volts p-p |
Output DDC signal | 5Volts p-p (TTL) |
Input/output HDMI1.3 cable distance | ≤10m AWG26 HDMI 1.3 standard cable |
Max working current | 400mA |
Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A |
Operating Temperature range | (-15 to +70°C) |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Dimension (L x W x H) | 82*57*27 (mm) |
Weight(RX & TX) | 640g |
Note:
In order to achieve better transmission quality image, please use the CAT-6 cable.
The low quality of the cable, can not achieve the best effect of video transmission and transmission distance.
If the product can not achieve the transmission distance of 60 meters, please check the wire quality.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Fast Flash Deal 60m HDMI Extender CAT5e/6 Support 1080p 60m Extension Like HDMI Splitter Transmitter Receiver for CCTV DVR NVR HD60
