Terrific New IP Camera testerNew 1920*1200 Retina Touch screen H.265 4K IP CCTV Tester Monitor Analog Camera tester for cctv camera

Terrific New IP Camera testerNew 1920*1200 Retina Touch screen H.265 4K IP CCTV Tester Monitor Analog Camera tester for cctv camera Rating: 4.5 out of 5

CCTV Security Cameras Product Store Choice Collections provide spy camera,camera system Terrific New IP Camera testerNew 1920*1200 Retina Touch screen H.265 4K IP CCTV Tester Monitor Analog Camera tester for cctv camera. Get Discount Now! Only US $315.79/piece at this time. Hurry buy Now before back to normal price! Normal price US $451.13 or you can Check price now. Dont waste your time. Buy Now only in TISAN Authorised Store Trusted Seller Store!

No doubt, this is a real product that offers numerous conveniences along with successful for you. Simply as you will certainly obtain a ton of money, this Special Terrific New IP Camera testerNew 1920*1200 Retina Touch screen H.265 4K IP CCTV Tester Monitor Analog Camera tester for cctv camera product has the ability to give a car that has to be very interesting for you. In selecting this goods, you could do different considerations that are provided in the magazine. The goods directory you obtain is certainly offer a reference for those of you who want to locate the goods you desire.

Main Function:

(1) 7 inch retina touch screen ,1920x1200 resolution. HDMI signal input, support 1080p;

(2) IP Camera test: Support H.265 mainstream test, 4K video display via mainstream ,4K IP Camera test(Max), IP discovery, IPC Test, ping IP, Rapid Onvif, RTSP play /Client APK;

(3) Rapid video, just by one key to detect all network cameras and auto display ;

(4) Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement;

(5) IP& CVBS test at the same time ,converter test from analog to digital with dual test window;

(6) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range is 180M.

(7) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen;

(8) Cable tracer :search BNC cable, network cable and telephone cable from the mess cable;

(9) Rapid ONVIF,by one key to activate Hikvision,auto login and view images .

(10) Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back,

(11) PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc, Support IP+Analog +CVBS camera test. Color bar test; 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt);

(12) Can install your own Android APK, Like whatsapp, skype etc.

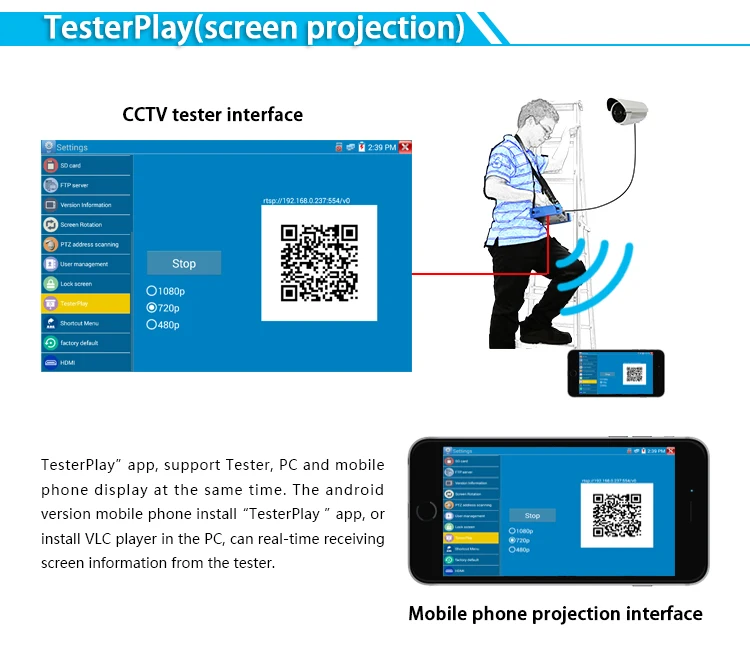

(13) TesterPlay: screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone);

(14) DC 12A 2A power output/ USB 5V 2A power output/ PoE power output /HDMI output,Built in WIFI.

(15) Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;

Product Overview

The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions , UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Application

●CCTV system installation and maintenance

●Network cabling project installation and maintenance

●Dome camera, IP Analog 4K H.265 camera testing

●Video transmission channel testing

●PTZ controller

Features

1. New -7 inch retina touch screen ,1920*1200 resolution

2. H.264 & H .265 ,4K video display via mainstream

3. IP camera test;

4. Analog camera test;

5. HDMI input;

6. RJ 45 cable test;

7. CVBS camera test ,PTZ controller

8. Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement

9. Cable tracer :search BNC cable, network cable and telephone cable from the mess cable

10.New- Rapid video, just by one key to detect all network cameras and auto display

11. TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile phone)

12. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

13. New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS

14. New- In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in

15.New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

17. Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need to customize

18. New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

19.New- Screen lock, password lock and pattern lock are optional

20. New- HDMI signal in and out , support 1080P

21. NEW- Backlit buttons.

22. New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot

23. New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

24. New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

25. New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

26. ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

27. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

28. New- 4K video files and MKV/MP4 media files play

29.PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

30.New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable

31.8GB SD card including

32.IP discovery, it can auto-scan the whole network segment IP, and auto-modify testers IP address

33.Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

35.Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

36.POE voltage measurement, PING test ,IP address scan, port flashing etc

37.Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

38.7.4 V /5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging , working time lasts 10 hours

Specification

Display 7 inch touch screen with retina display ,1920*1200 resolution
TVI Test Not available
AHD Test Not available
CVI Test Not available
SDI Test Not available .
CVBS Test

(1) 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt),

(2) Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement;

(3) PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc;

(4) CVBS loop test: the tester send and receive color bar generator signal, check BNC cable

IP Camera test

(1) IPC test /IPC viewer /Rapid Video/RTSP /ONVIF;

(2) Rapid Video: can create testing report;

(3) Hik test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters;

(4) Dahua test tool: Dahua camera test, modify the user name, password and IP parameters;

H.265 4K Camera test H.264 & H .265 ,4K video display via mainstream
IP &CVBS test IP& CVBS test at the same time ,converter test from analog to digital with dual test window
HDMI input/Output 1 channel HDMI input support 1080P, 1 channel HDMI output,support 1080P
WIFI Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
IP camera typeCustomized camera protocols welcome. ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T, IPC,FSJ BY-1080Q,WEISKY IPC camera etc.
Audio in /out Support record and save the audio/LED lamp, calculators, music players and other application tools
Video Level Test PEAK ,SYNC signal level, color burst chroma level measurement
Zoom Image 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Power output

(1) Output DC12V/2A power out ,supply temporarily power for the camera

(2) 48V PoE power output, max power 24W

(3) USB 5V 2A power output, as a power bank

Cable test

(1) Cable tracer: search BNC cable, network cable and telephone cable from the mess cables;

(2) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen;

(3) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Testerplay screen projection: tester, android version mobile phone and PC display at the same time
Network test Trace route, Link monitor , DHCP server, port flashing , Ping test
PoE power output48V PoE power output,Max power 24W
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone;
Rapid Onvif Auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
Color bar generatorOutput one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
Memory 8GB SD card including
Data monitor Captures and analyzes the command data from controlling device,also can send hexadecimal
Software Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
PoE test Measurement POE switch or PSE power supply voltage and cable connection status
POWER
External power supplyDC 12V 2A
BatteryBuilt-in 7.4V Lithium polymer battery ,5000mAh
RechargeableAfter charging 6~7 hours, normal working time 10 hours
Parameter
Operation setting OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc
Auto off1-30 (mins)
General
Working Temperature,-10°C~+50°C
Working Humidity30%-90%
Dimension/Weight231mm x 172mm x 52mm / 1.26Kg

Product interface introduction

Packing list

1). Tester

2). Adaptor DC12V 2A

3) Network cable tester

4) Polymer lithium ion battery (7.4V DC 5000mAh)

5). BNC cable

6). RS485 cable

7). SC,ST connector(Only for optical power meter)

8). Multi-meter test leads one pair of red and black (only for the Multi-meter models)

9). Output Power cable

10). Audio cable

11). TDR alligator clamp (only for TDR models)

12). Safety cord

13). Tool bag

14). Manual

15).8GB SD card
