CCTV Security Cameras Product Store Choice Collections provide security surveillance,camera system,hidden camera,cctv camera Super Flash Deal 2018 Upgrade New 170 Degree Wide Angle Door Eye Camera Sony Ccd 700TVL Bullet Mini CCTV Camera -PAL. Get Discount Now! Only US $24.18/piece at this time. Hurry buy Now before back to normal price! Normal price US $26.00 or you can Check price now. Dont waste your time. Buy Now only in GP-POINTR Store Trusted Seller Store!

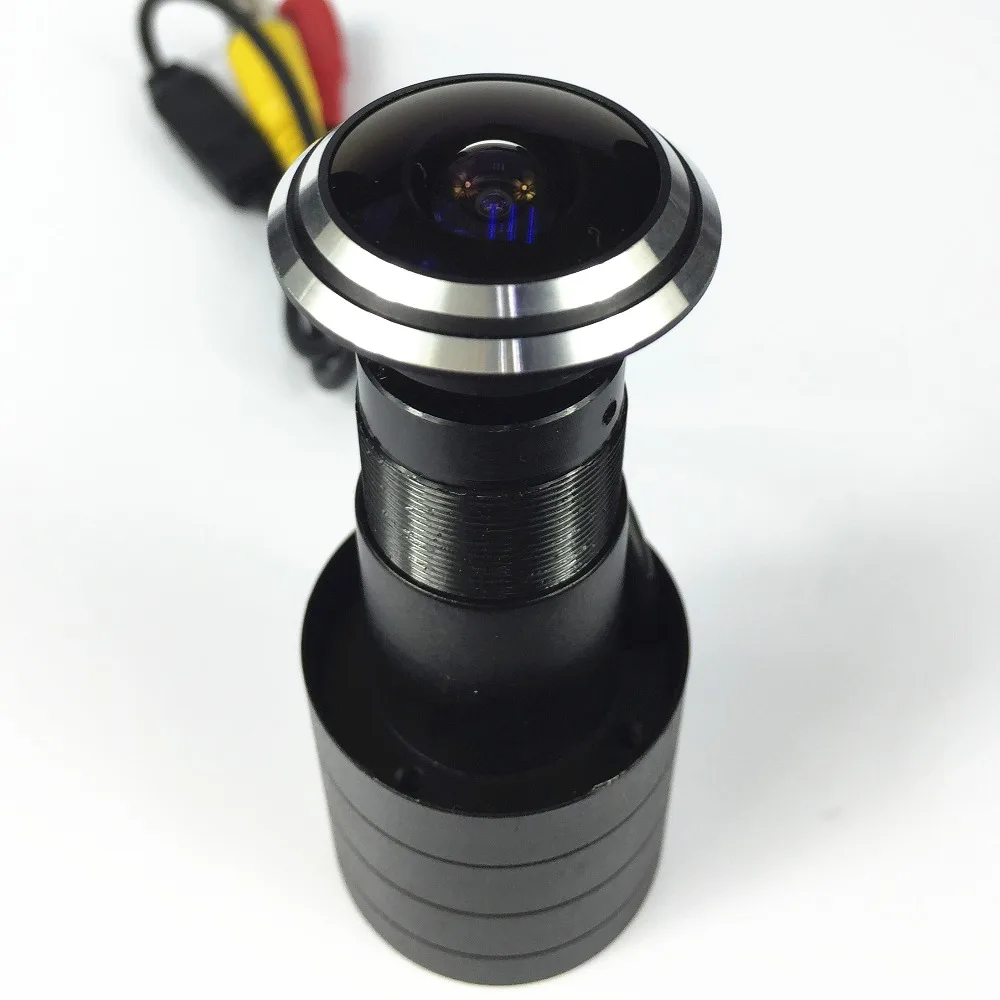

2018 Upgrade New 170 degree wide angle door eye Sony 700TVL Bullet Mini CCTV Camera
|
. 7 inch LCD TFT HD Digital VGA/AV . d Held Metal Detector Wter-resistant Desig
Features:
mage Sensor: 1/3" Sony Super HAD CCD II
DSP: Effio-E (4140+811/810)
Horizontal Resolution :700TVL
Effective Pixel:NTSC:976(H) X494(V) PAL:976(H) X582(V)
Min. Illumination :0.001 Lux (F1.2)/ 0 Lux IR On
Signal System: NTSC/PAL
Lens: Standard 1.8mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75MA
Specification Of the Camera:
Model | RX700BT |
Image Sensor | 1/3" Sony Super HAD CCD II |
DSP | Effio-E (4140+811/810) |
Horizontal Resolution | Color Mode: 650TVL; B/W Mode:700TVL |
Effective Pixel | NTSC:976(H) 494(V) PAL:976(H) 582(V) |
Min. Illumination | 0.001 Lux (F1.2)/ 0 Lux IR On |
Signal System | NTSC/PAL |
Electronic Shutter | NTSC:1/60~1/100,000, PAL:1/50~1/110,000 |
S/N Ratio | More than 48dB |
Gamma | 0.45/1.0 |
Exposure | Auto |
OSD | Support |
White Balance | ATW / User1/User2 |
Backlight | OFF/ON/BLC/ HLC |
Pic Adjust | Mirror/Brightness/Contrast/Sharpness/Hue/Gain |
ATR | ON/OFF |
D-WDR | Yes |
Motion Det | OFF/ON(Detect sense/ Area Sel) |
Privacy Masking | OFF/ON (4 Zone) |
Day/Nigh | True Day and Night (Auto/ Day / Night / Ext. D&N) |
2D-NR | OFF/ON (0-15/16 level) |
Camera ID | OFF/ON |
Sync. System | Internal |
Audio Output | Optional |
Video Output | 1 Vp-p / 75 Ohms |
Working Conditions | -20~60Degree/0-93% Humidity |
Power Supply | DC12V/75MA |
Note: 1.8mm lens, PAL SYSTEM,Black housing color default for this camera. If the buyer want other size lens,other system,other color, please Leave Message to notify us when bidding.
Trouble and Solution:
1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.
2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
The fluorescent lamp\s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.
4.The picture smear too mass
The power supply\s voltage unstable
Connecting cables not connect correctly or have high impedance.
1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.
2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
The fluorescent lamp\s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.
4.The picture smear too mass
The power supply\s voltage unstable
Connecting cables not connect correctly or have high impedance.
2015 Upgrade New Mini Outdoor Invisible 8 IR 940nm No red storm Nightvision Sony 700TVL Bullet Mini CCTV Camera HD MINI camera
2015 Upgrade New Mini Outdoor Invisible 8 IR 940nm No red storm Nightvision Sony 700TVL Bullet Mini CCTV Camera HD MINI camera
2015 Upgrade New Mini Outdoor Invisible 8 IR 940nm No red storm Nightvision Sony 700TVL Bullet Mini CCTV Camera HD MINI camera
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Super Flash Deal 2018 Upgrade New 170 Degree Wide Angle Door Eye Camera Sony Ccd 700TVL Bullet Mini CCTV Camera -PAL
