CCTV Security Cameras Product Store Choice Collections provide security camera,cctv camera Big Deals Audio 2MP 1080P Auto Tracking PTZ IP Camera 20X Optical Zoom Camera IP Onvif CCTV Security Camera Night Vision infrared. Price at this time US $300.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shenzhen imporx limited company Trusted Seller Store!

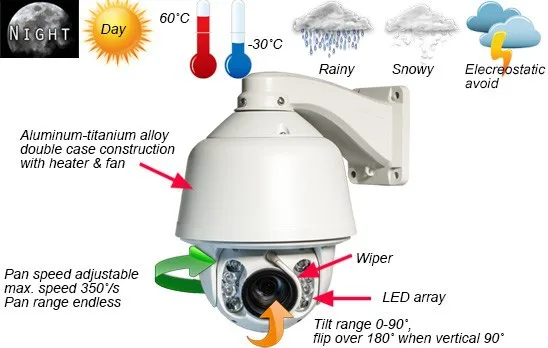

Work in all weather no limit

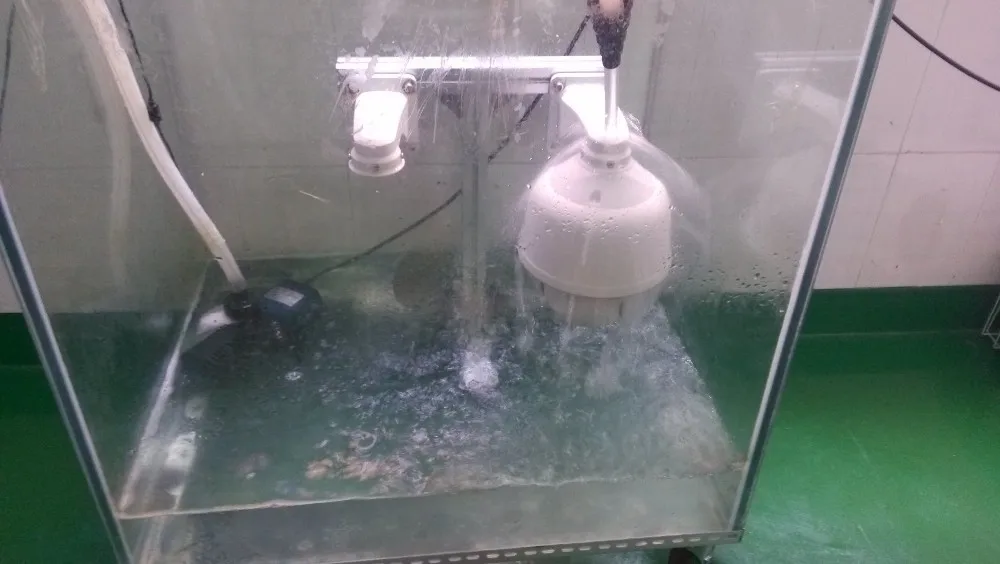

Aluminum-titanium alloy double case construction waterproof IP66
Built- in Heater/ Fan can work temperature rang -30 to +60 degree

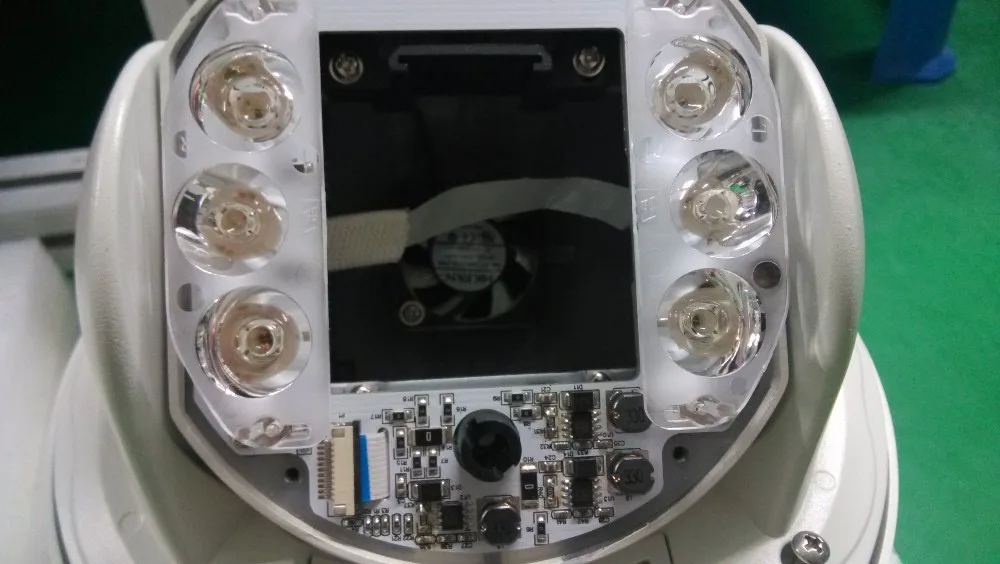

Wiper will assure you to get the clear picture even under the raining and snowing day IR LED Array is the best solution in night vision, the camera with two groups IR Leds one with wider angle for close, one with narrow angle for further. IR effect range up to 100meters Employed advanced safeguard circuit to prevent the camera damaged by instantaneous pulsing signals such as surge or lightning strike...etc.

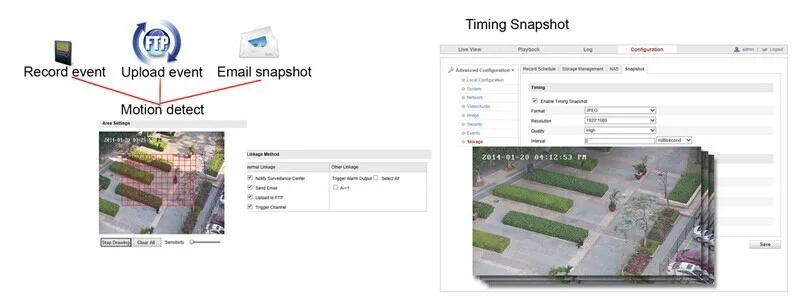

Motion Detect alarm and Timing Snapshot
Connecting Diagram
Specification
| Camera | Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) | |
| Min. Illumination: | Color: 0.05Lux (F1.6, AGC ON), B/W: 0.005Lux@(F1.6, AGC On); 0 Lux with IR | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| S/N Ratio: | >50dB | |
| Day & Night: | IR Cut Filter | |
| Backlight Compensation: | HLC/BLC | |
| Digital Noise Reduction: | 3D DNR | |
| Wide Dynamic Range: | Digital WDR | |
| Shutter Speed: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
| Focus Mode: | Auto/Semiautomatic/Manual | |
| Enhancement: | Smart Defog: on/off | |
| Lens | Focal Length: | 4.7 ~ 94mm, 20x |
| Zoom Speed: | Approx 2.7s(Optical Wide-Tele) | |
| Angle of View: | 58.3 ~ 3.2 degree (Wide-Tele) | |
| Min. Working Distance: | 10 ~ 1,500mm (Wide-Tele) | |
| Aperture Range: | F1.6 ~ F3.5 | |
| Pan & Tilt | Smart Tracking: | Support |
| Pan / Tilt Range: | Pan: 360° endless; Tilt: -2° ~ 90° (Auto-Flip) | |
| Pan / Tilt Speed: | Pan Manual Speed: 0.1° ~ 240° /s, Pan Preset Speed: 340° /s | |
| Tilt Manual Speed: 0.1° ~ 120° /s, Tilt Preset Speed: 160° /s | ||
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan, Panorama scan | |
| PTZ Position Display: | On/Off | |
| Preset Freezing: | Support | |
| Scheduled Task: | Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Self-test/Alarm output | |
| Infrared | Smart IR: | Support |
| IR Distance: | Up to 120m | |
| IR Intensity: | Automatically adjusted, depending on the zoom ratio | |
| Network | Ethernet: | 10Base-T/100Base-TX, RJ45 connector |
| Max. Image Resolution: | 1920x1080 | |
| Frame Rate: | 50Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960) , 25 fps (1280x 720) | |
| 60Hz: 30 fps (1920 x 1080), 30 fps (1280x 960) , 30 fps (1280x 720) | ||
| Image Compression: | H.264/MPEG4, H.264 encoding with Baseline/Main/High profile | |
| ROI encoding: | Support 24 areas with adjustable levels | |
| Audio Compression: | G.711u/G.711a/G.726 | |
| Protocols: | IPv4/IPv6, HTTP, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE | |
| Simultaneous Live View: | Up to 10 | |
| Streams: | Three Streams | |
| Mini SD Port: | 8GB /16G/32G | |
| User/Host Level: | Up to 32 users, 3 Levels: Administrator, Camera control, Live view only | |
| Security Measures: | User authentication (ID and PW), Host authentication (MAC address); IP address filtering | |
| Integration | Application programming: | Open-ended API, support Onvif, PSIA and CGI |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, preset calling and programming, auto tracking mode, Wiper | |
| Client software: | Support iVMS-4200 PCNVR | |
| Web Browser: | IE8+,, Firefox 3.5+ | |
| General | RS-485 Protocols: | Pelco-P, Pelco-D, self-adaptive |
| Video Output | BNC 1.0V p-p composite(75Ω) | |
| Audio | RCA 1 channel In/Out | |
| Alarm | 1 channel In/Out | |
| Working Temperature: | -35°C~65°C (-22°F~149°F) | |
| Humidity: | 90% or less | |
| Protection Level: | IP66 standard (outdoor dome) | |
| TVS 4,000V lighting protection, surge protection and voltage transient protection | ||
| Weight (approx.): | 5.5kg (12.13lbs) | |
| Power: | 12VDC 4Am : Max. 65W (heater: 45W) |
